Features: High channel density Reliable and fault-tolerant deployment Remote management capability Stand-alone (embedded) or host-based (network streaming) operation Fully integrated and assembled (the USRP N310 does not support swappable daughtercards) 10 MHz to 6 GHz extended frequency range Up to 100 MHz of instantaneous bandwidth per channel 4 RX, 4TX in half-wide RU form factor[1]…

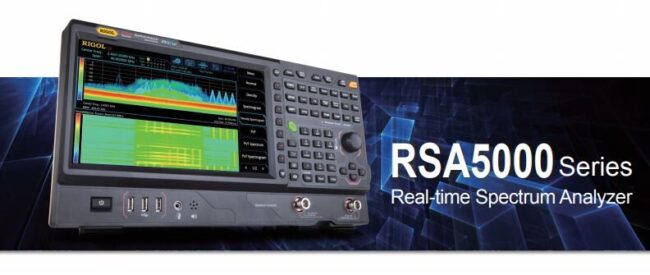

Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference. Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA5000 combines industry leading realtime performance (7.45µs 100% POI),…

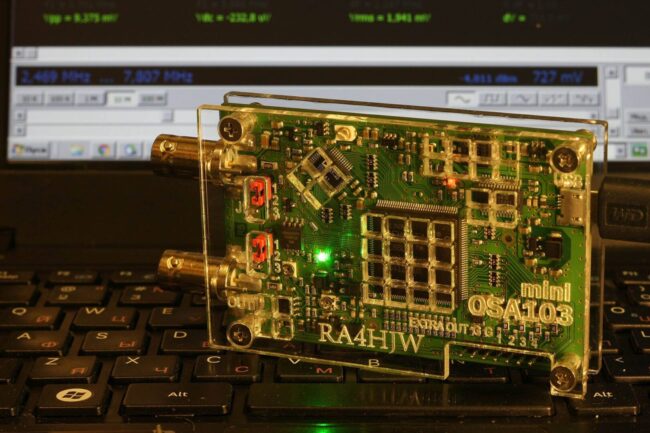

OSA103 Mini PC based USB multifunction measuring device Multi channel mixed signal oscilloscope. Multi function generator. Frequency meter. Spectrum analyzer. Frequency response analyzer. Vector antenna analyzer. LC Meter. Reflectometer. SDR transceiver. Oscilloscope. 1 analog channel + 4 digital channels + generator channel. Analog channel input impedance – 50 ohms, Analog channel bandwidth – 1 Hz…
The CX-AUTO offers the following features: Strong RF shielded enclosure .090″ aluminum, anodized and powder-coated chassis and cover/mounting bracket Low loss (< 0.1dB) and excellent isolation (>60 dB) Un-selected ports are shorted to ground Low power operation (10-15VDC, 30mA, no output selected, 120mA w/one output selected) Uses common, readily available, non-proprietary cables and connectors.…
The most affordable vector HF antenna analyzer in the world! USB connection & free software. Arduino users: add a vector impedance analyzer and an RF generator to your project! Why the AA-30.ZERO? Creating the AA-30.ZERO, we met the numerous wishes of radio amateurs and DIY-hobbyists to give them a measuring tool that can be…
