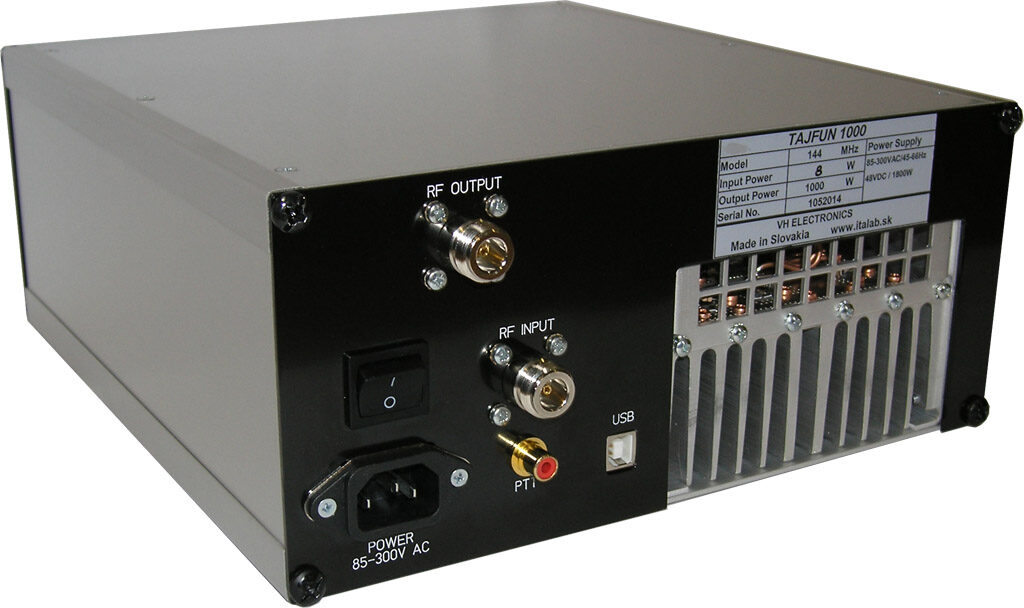

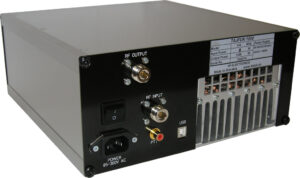

TAJFUN-1000 VHF PA

TAJFUN 1000 is small, lightweight but robus LDMOS Power Amplifier.

Specifications:

• Freqency Coverage: 142-146 MHz (Available versions for 50-70432 and 1296 MHz)
• Operating Mode: FM, CW, SSB, DIGI
• Output Power: 1000W
• Input Power: 8-9W (inside 3dB hybrid attenuator)
• Power supply inside: 48VDC / 1800W
• Suppression of harmonics: <= 75dBc
• LowPass Filter
• Working temperature: 0-45 °C, Max. humidity 90%
• Protection from: PWR, SWR, Tmax, Imax, Umax/Umin
• Control / Display: color TFT display

Measurment and display:

• Current
• Voltage
• Power
• Reflected power
• Peak power
• Temperature

• Power supply: 85-300VAC, 45-66Hz
• Dimension: 266x105x294mm
• Coaxial Relay: CX600NC – CX140D
• Weight: 5,5kg

Manual (pdf)
