LDG desktop tuners are perfect for your home shack, but can also be used portable or mobile if the need arises. Different models handle RF power levels from 100 to 1000 watts. LDG’s generic tuners work with almost any transceiver or transmitter.

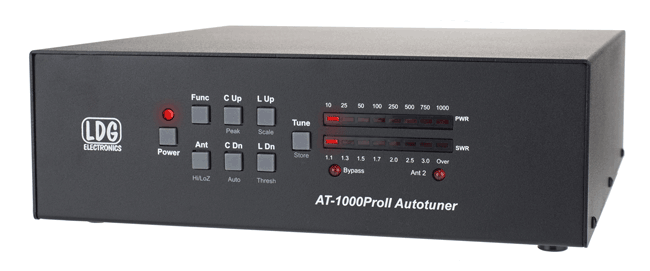

The LDG AT-1000ProII is LDG’s flagship automatic tuner. Made for QRO hams, it will handle 1,000 watts SSB or 500 watts FM/Digital from 1.8-54 MHz.
Like most LDG tuners the AT-1000ProII operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. To protect its circuitry, the tuner will not tune at power levels above 150 watts; bypass your amplifier (or place it in Standby) to complete a tuning cycle using only the exciter. The AT-1000ProII also features LDG’s advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.
The AT-1000ProII has a large, easy to read bar-graph wattmeter that show forward and reverse power with two selectable ranges (100 and 1,000 watt scales) as well as an SWR meter. The AT-1000ProII will interface with many popular transceivers so you can start a tuning cycle with the radio’s TUNE button. Dedicated control buttons on the tuner allow you to fine-tune capacitance and inductance on those rare occasions when the AT-1000ProII can’t find a perfect match by itself.
The AT-1000ProII features two output connectors so you can easily switch between two antennas. There are 2,000 memory locations for each antenna, allowing nearly instant returning on frequencies you’ve used before.
The AT-1000ProII will tune from 1.8 to 54.0 MHz continuously, and will match Yagis, dipoles, inverted-Vs, slopers, or virtually any coax-fed antenna from 6 to 1000 ohms impedance (16 – 150 ohms on 6 meters). Tuning time is normally under 10 seconds; memory tuning time is under 0.2 seconds. Longwires or antennas fed with ladder line require an external balun, not included.
Specifications:
- Transmit Power Limits: SSB: 1000 watts; CW: 750 Watts; FT-8: 600 watts; PSK and other Digital Modes: 500 Watts; 6 Meters: 250 Watts.
- Teflon SO-239 connectors.
- Over 4,000 memories for instantaneous band changing.
- Built-in 2-port antenna switch, with 2,000 memories each.
- Tuning time 0.2 to 15 seconds full tune, 0.2 seconds memory tune.
- 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
- Tunes 6 to 1,000 ohm loads (16 to 150 on 6m).
- LED bargraph displays power level, SWR, and status.
- Antenna Indicator LED shows the currently selected antenna.
- Bypass LED shows when the tuner is in pass-thru.
- User-selectable operating parameters: Auto/Semi, 1000W/100W scale, and more.
- DC power cable included.
- Power requirements: 11 to 16 VDC @ 1A max.
- Dimensions: 11.5”L x 9.75”W x 3.25”H
- Weight 4 pounds, 5 ounces.
Docs:
Price: $569.99
