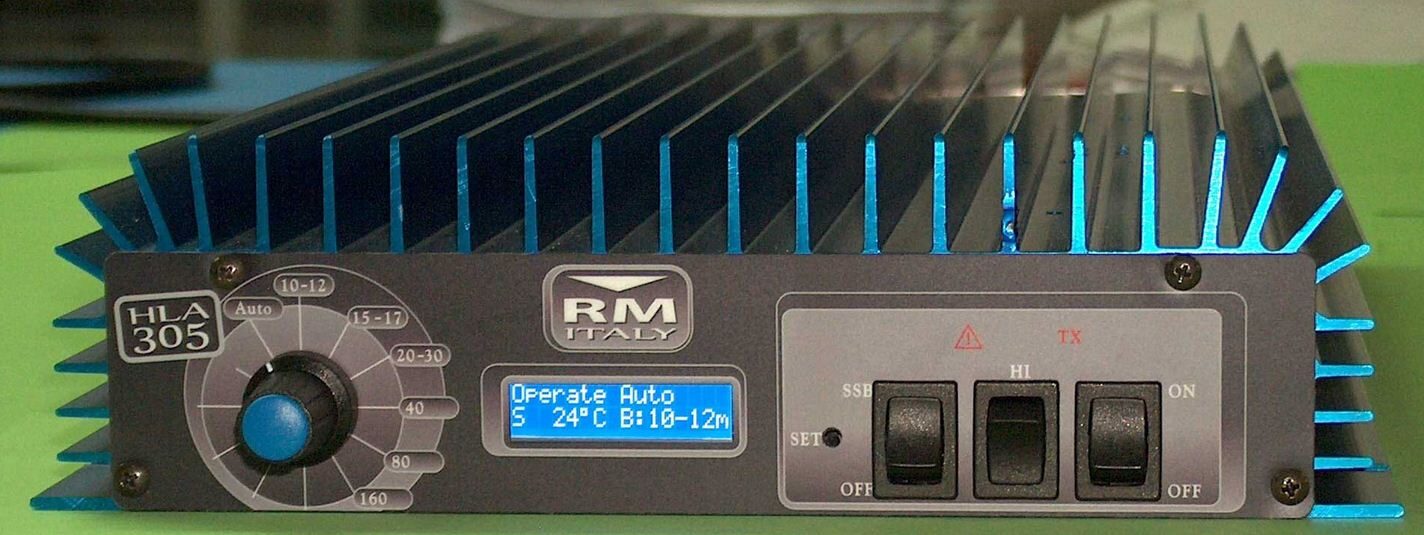

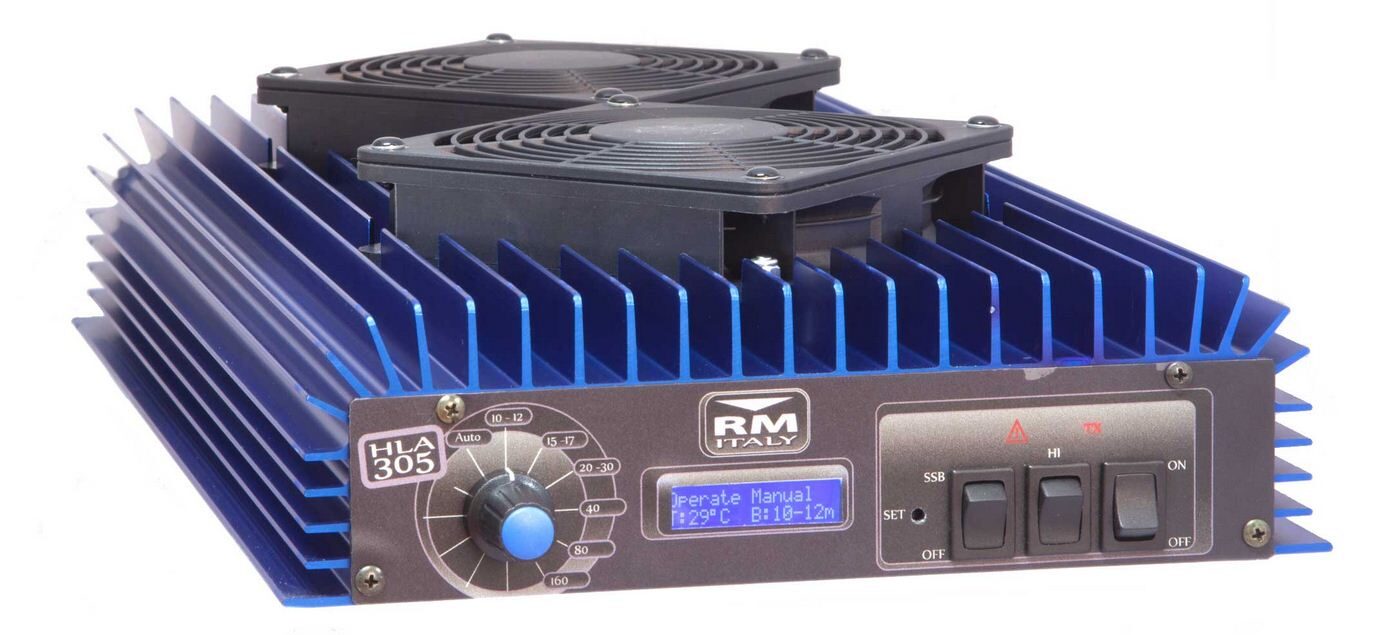

Linear amplifier HLA-305. Made in Italy. (New version)
- Frequency : 1.5 ~ 30 MHz all amateur bands including WARC bands
- Mode: AM, FM, SSB, CW, RTTY
- RF Drive: 10W typ. (15W max.)
- Average Output Power: P1dB 200W CW ±1dB typ.
- P3dB 250W CW ±1dB typ.
- Gain: 16.5 ± 1dB P1dB
- Power Voltage: 13 Vcc ±2V
- Input Current: 45 A max.
- Input Impedance: 50W (unbalanced)
- Output Impedance: 50W (unbalanced)
- Final Transistor: MRF 455 x 4
- Circuit: Class AB push-pull
- Cooling Method: Forced Air Cooling (HLA305V)
- Microprocessor – MPU: PIC 18F4620
- LCD: Heat-sink temperature
- Used band Settings
- Protection: Input Power
- Filter Error
- S.W.R.
- Temperature
- Frequency
- Input/Output Connectors :
- UHF SO-239 with low loss Teflon insulator
- PTT (RCA Connector)
- Dimensions : 240 x 67 (90 HLA305V) x 450 mm (W x H x D)
- Weight : Approx. 4 kg. Or 8,8 lbs.
- Accessories : Power Connector
Price: 570,00 EUR
