Specifications:

  • Built-in power supply and antenna selector
  • Dimensions. W37 H17 D43 cm（L14.56”×H6.69”×D16.93”）
  • Weight 12.5 Kg（27.5lbs）

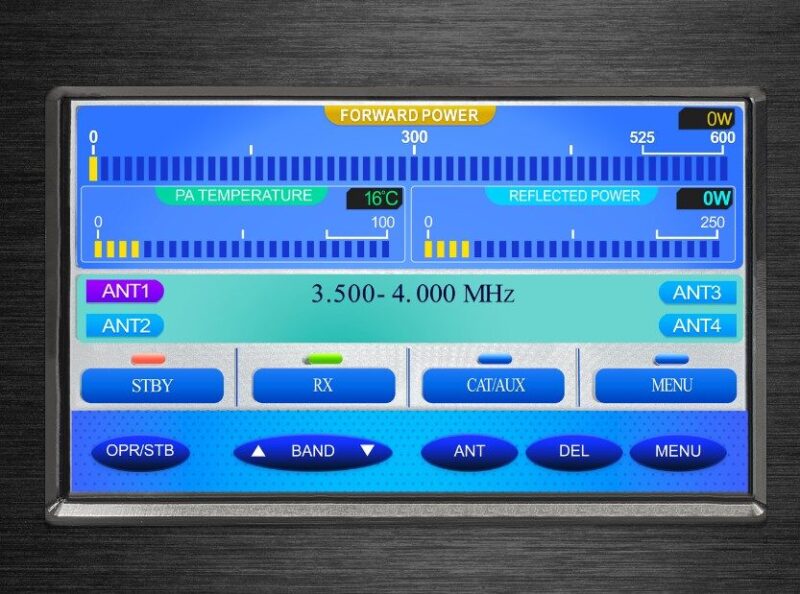

  • Colour Screen 12.7cm by 8.89cm（5 inch), resolution 800×480, 65K, 16 Bit RGB
  • Displays Multiple Parameters, Status, PEP output, PA Voltage, PA Current, Power Gain, Temperature, SWR, Frequency and Band
  • Connects to all Transceivers easily with RF Sensing for Band selection and control
  • Frequency Coverage 1.8 Mhz to 50 Mhz including WARC Bands
  • Power Output 1.2Kw
  • Clean and low distortion output using single 1500w MOSFET
  • Spurious emission less than – 60 dB (50 MHz – 65 dB)
  • Third order distortion (Double Tone Test) 36 dB (typical)
  • Input 50 ohm Unbalanced Matching with SWR less than 1.8:1
  • 4 SO239 Antenna Connectors



  • Comprehensive Protection Systems including Temperature, Voltage, Current, Reflection, SWR, PW and VRF Maximum Values, Overdrive and Open/ Short Circuit Protection
  • Quiet Operation with large heat sink and near silent cooling fan
  • Easy to Maintain
  • Hardware warnings stored internal to Amplifier using no volatile memory
  • Power Supply Voltage Range (100 to 250v), Limited inrush current and pure sinusoidal, Automatic Power Factor correction (PFC)
  • Rear mounted RS232 Port for remote operation
  • Supplied with carry bag designed for field operation

Price: £2,799.95
