QRO – 2000W tube linear amplifier “HF2015DX” Amplifier. Price $2280 USD.
Available also Automatic version of PA – “HF2015DX-A” (Price is unknown).
Description:
- RF Linear amplifier covered 1.8-30MHz amateur band , using Chinese FU728F ceramic tetrodes working at Class AB1
- Input:30-40W output: 2000W ;
- Input:60-70W output: 2600W( no recommend) .
- 3rd Order: -34dbc
- Protection:exceed anode temperature; exceed current(screen/anode),;over drive; SWR.
- Heavy duty band switch and heavy duty HV transformer, independent filament transformer.
- Net weight :38kg, shipping weight about 50kg.
- Dimension:W:485mmXD:455mmXH:200mm( not including feet and knobs)
- 1 year (tube) and 2 years(others) guarantee.
P.S. On Photo – “LP-100A” Meter is NOT FOR SALE.

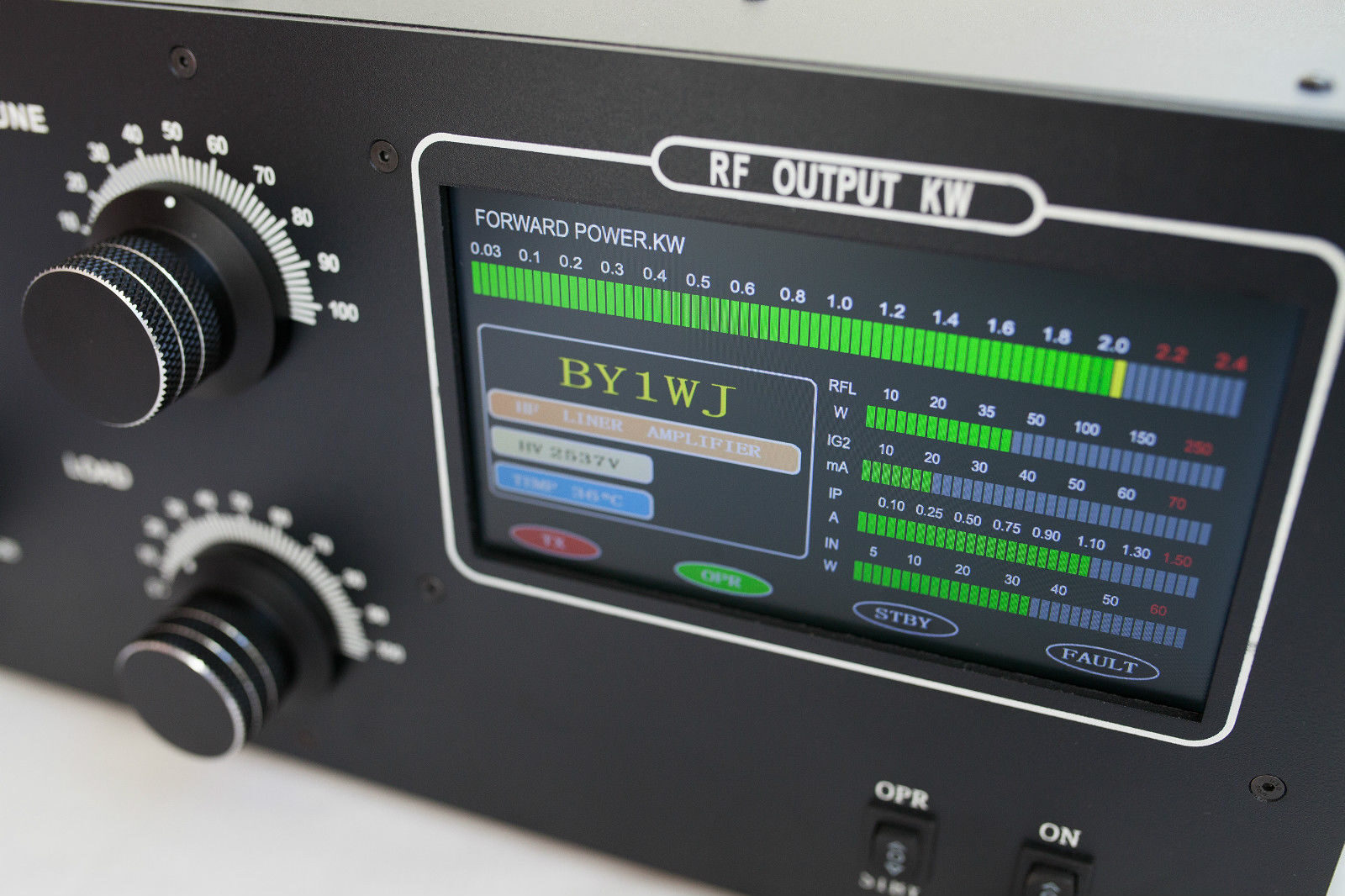

The Control Panel of the Automatic PA Version
