Features

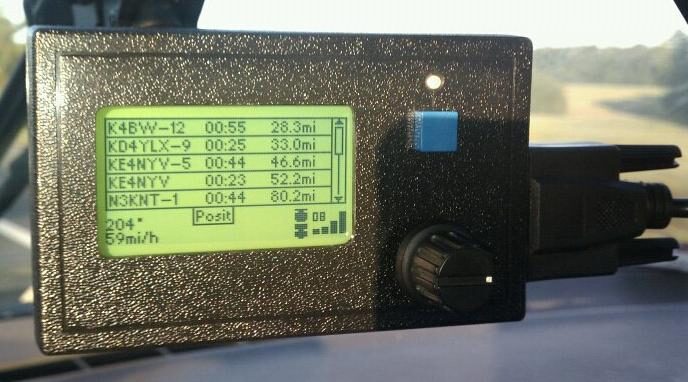

128×64 Graphical LCD Display
ARM Cortex-M3 Processor
Built in 1200 baud modem (codec powered)
Requires external GPS (4800 baud, serial)
Supports $GPWPL waypoint output string (map stations on GPS)
Holds a station list of last 50 heard stations in EEPROM
Main screen can recall back to the last 6 heard stations
Station list sorting by last heard or distance
GPS Display shows which sats are heard and signal strength
Tracking feature to track back to a station/waypoint
Digipeat histogram shows digipeat “health” of your own station and others
Map plot screen plots all in station list
Map plot has “show callsign” feature to see who is who
Map plot can be oriented “North Up” or auto-rotate in direction of travel
Full messaging with on-board keyboard-like layout
Messaging “chat” screen for quick replies
Stores up to 10 canned messages (can be edited by user)
Built-in graphical scope helps tune incoming audio for packet modem
Firmware is not open source, but will be free for upgrading
Firmware loads through simple terminal XMODEM protocol
Package Includes:
YagTracker APRS Tracker/Terminal
Matching DB9 Connector/Hood
Manual on CD-ROM
PRE-ORDER ONLY
$195 + Shipping
