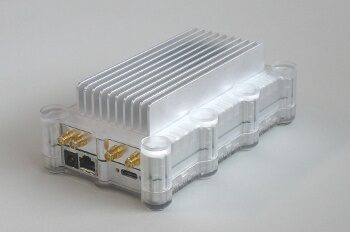

The WiNRADiO WR-G69DDC ‘Artemis’ is a top performance, software-defined, wide-band, ultra-fast search speed 3 GHz/s, HF/VHF/UHF/SHF receiver. Two independent and mutually exclusive inputs are provided, one for each range: 8 kHz to 80 MHz and 43 MHz to 8 GHz. A real-time 80/34 MHz-wide spectrum analyzer is included with a 32 MHz wide instantaneous bandwidth available for recording, demodulation and further digital processing over the whole frequency range.
The receiver’s superior performance results from its innovative, combination of direct-sampling and superheterodyne, digital down-conversion architecture along with the use of leading-edge components and design concepts. These all result in excellent sensitivity, phase noise and dynamic range, highly accurate and stable tuning, high scanning speed and perfect demodulation. These key features create a receiver in a class of its own, making it capable of filling not only the role of a monitoring receiver but also that of a fast search receiver and measuring receiver, with many operational and instrumentation features not usually found on receivers of any price category.
The entire 32 MHz DDC (digitally down-converted) bandwidth is available for recording and demodulation, and ideal for hopping frequencies analysis. Three demodulators allow the simultaneous reception and decoding of radio signals within the entire band.
The WR-G69DDCe also features optional external reference frequency inputs and outputs as well as 1PPS pulse input. In addition, stereo analog output is also possible, as well as wide audio (10 Hz-150 kHz). The special data port offers numerous possibilities which include GPIO (general purpose I/O), HSP (high speed data output), or traditional RS232 interface.
Features:
8 kHz to 8 GHz frequency range
Direct sampling & superheterodyne
Digital down-conversion
16-bit 200 MSPS A/D converter
80/34 MHz-wide, real-time spectrum analyzer
32 MHz recording and processing bandwidth
Continuously adjustable filter bandwidth down to 1 Hz
Waterfall display functions and audio spectrum analyzer
Audio and IF recording and playback
Recording with pre-buffering
Ultra-fast search speed 3 GHz/s
High sensitivity
Excellent dynamic range
Excellent frequency stability (0.1 ppm)
Test and measurement functions
Networking version of application software available
USB 3.0 and 1 Gb Ethernet (with PoE) data interfaces
Numerous data and signal hw options
Self-diagnostics with BIT and thermal management
The receiver interfaces to a Windows-compatible PC via USB 3.0, or 1 Gb Ethernet LAN port with PoE (Power over Ethernet functionality according to the IEEE 802.3at standard).
For the highest bandwidth use, connection is best via USB3 for short distances (up to 3m). As the G69DDCe is equipped with an Ethernet socket, semi-remote connection to a computer is possible via a long Ethernet cable (up to 100m in length). For longer distances or when located in a busy or remote network, the Networking CSO option is recommended.
The receiver is very well shielded against interference, making it possible to operate in a noisy computer environment. Its modest power requirements are less than 20 watts. While connected via a LAN interface, thanks to PoE built-in functionality, the receiver can be operated and powered via a long Ethernet cable connection.
