RF HAMDESIGN Rotator RAK Controller Rot1PWM
- A medium to heady duty rotator
- Up to 3240 lb-inch / 336 Nm torque
- Equivalent to G-1000/2800 but with digital control
- Worm gear drive so precise stop with nil backlash
- Supplied with digital controller
- Future-proof firmware upgradable via PROM
- Mast or head unit mounting with adaptor plate

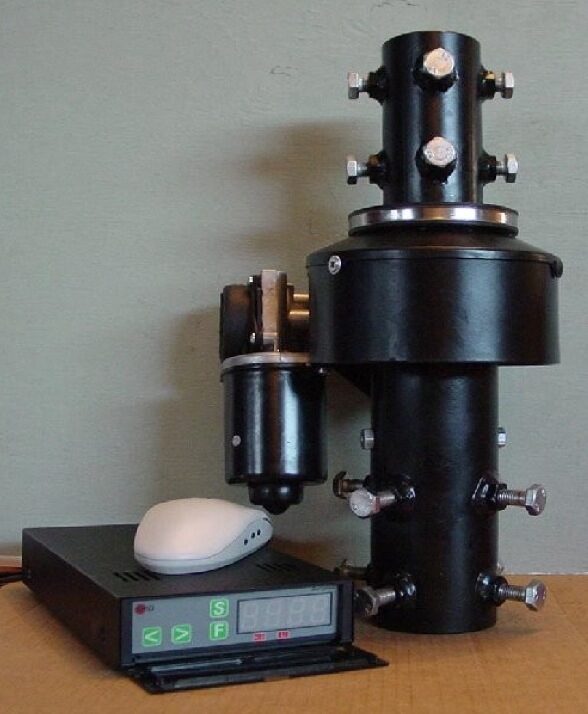

The SPID RAK medium to heavy duty azimuth rotator is a solid built design using a double reduction work drive to ensure zero backlash, precise control and yet retain mechanical simplicity.
Supplied complete with multifunction digital controller that provides:
- 1 degree resolution readout
- Manual, Automatic, Scanning and Programmable Modes
- Large Soft Green LED display
- Serial Computer Interface with software supplied including Hygain, Orion and Yaesu emulation modes.
- Can be zeroed at any position
- +/- 180 degree over-travel limits with electronic programmable limit control
- Designed for max 60mm input/output mast/pole
- Adaptor plate available to mount rotator inside tower head unit.
- Power supply 12-24V (best turning performance at 24V)
- Turning speed for 360 degrees : 12V – 130 Sec, 24V – 65 Sec
Price: inc VAT ?645.00 ($ 1,018.80 USD)
Download the INSTRUCTION MANUAL (pdf file)
