Overview

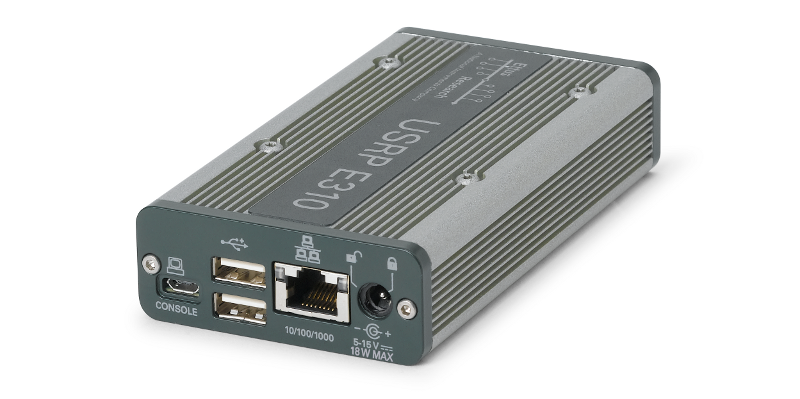

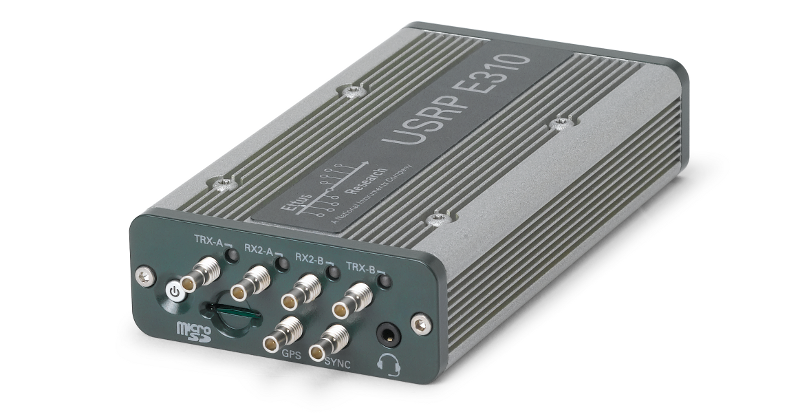

The USRP E310 pocket sized, stand-alone software defined radio provides 2×2 MIMO support covering 70 MHz – 6 GHz and up to 56 MHz of instantaneous bandwidth. At roughly the footprint of a mobile phone, with a typical power consumption of 2-6 watts, the USRP E310 is ideal for mobile and embedded applications with limited size, weight, and power requirements. A lighter weight, partial-enclosure version is available for custom and volume deployments. Baseband processing is performed in the Zynq 7020 IC which combines a reconfigurable Xilinx 7 series FPGA and integrated dual-core ARM A9 processor running a Linux operating system. Common to all USRP devices, the open-source software architecture provides cross-platform support with the USRP Hardware Driver(UHD™). UHD allows for compatibility with a large selection of applications and frameworks, such as GNU Radio.
Features:
RF Capabilities
2×2 MIMO transceiver
Up to 56 MHz of bandwidth
Frequency coverage from 70 MHz – 6 GHz
TX & RX front-end filter banks
Flexible rate 12-bit ADC/DAC
Synchronization input (PPS)
Processing
Xilinx Zynq 7020
Dual ARM Cortex A9 – 667 MHz
Xilinx 7 Series FPGA
1GB DDR3 RAM for ARM CPUs
512 MB DDR3 RAM for FPGA Logic
Peripherals
10/100/1000 BASE-T Ethernet
Stereo audio output & mono mic input
Integrated GPS receiver
Host USB Support
Form Factor
133 x 68 x 26.4 mm
375 g
Included in This Kit:
USRP E310
Power Supply
2 x SMB-to-SMA Adapter
1 Gigabit Ethernet Cable
USB2-to-microUSB Cable
Imaged microSD Card
Getting Started Guide
Price: $2,700.00 USD
