A fully-functional suite of SDR programs which run on both 32-bit and 64-bit Windows from XP (SP3) through to Windows 8.
V2, SDR MK1.5 Andrus (Video by SimonHB9DRV)
Goals:
Clean user interface, no unnecessary features,
Client / server design – locate your SDR receiver anywhere in the world where’s an internet connection, network bandwidth for acceptable reception can be as low a 45 kbps.
The console is only a console – digital modes, satellite tracking are in an ‘extras’ pack,
Low CPU usage, acheived by use of Intel’s IPP library and highly efficient GDI+ programming,
Licenced – to protect the codebase.
Multi-monitor support.
HF Radio integration – Q3 2013
Integration into http://sdrspace.com – Q1 2013
Extras:
In addition there will be an ‘Extras’ pack containing:
Satellite Tracking,
Digital Modes,
Rotator Controller.

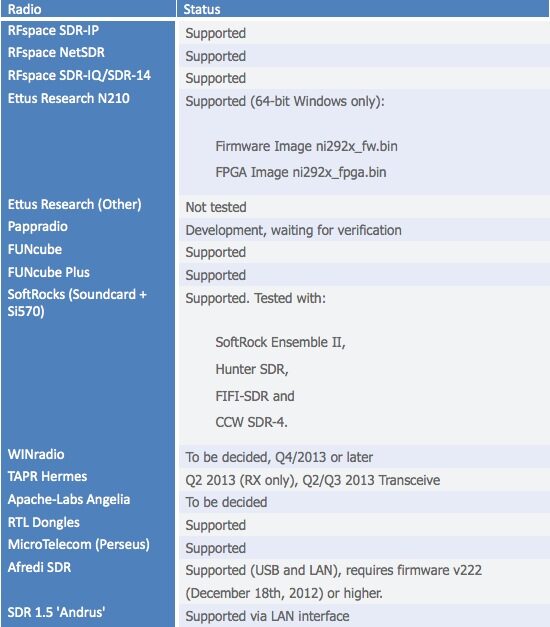

Supported SDR Radios:
New Application Version and changes:
- The radio selection window now shows whether the radio is in use.
- Up and down-converter selection in the radio selection window is now radio-specific.
- Demodulators (aka VFOs) do not process any data or generate audio if they are outside the data span of the radio.
- Increased resolution of the audio spectrum.
- Window position and zoom state now correctly restored.
- Fixed issue with remote server not closing radios correctly, especially those using 3rd-party dlls such as Perseus.
- Radio definitions:
- contain a free-format name,
- can be added (ethernet only – Afedri, Andrus and RFspace),
- can be edited (example: change the definition name).
- Noise blanker added.
- Wide-FM demodualtion issues resolved, no filter or de-emphasis is applied when in wide-FM so the response whould be flat.
- VFO pane’s Start button now renamed as Enable, text added to toolbar to make it more obvious when a VFO pane is not enabled.
- Server manager layout reorganised.
- Server manager now has a History window which shows all connection for the current month.
- RTL Dongle issue with frequency calibration resolved.
- RTL Dongle now has extra options:
- Use offset tuning
- Use internal digital AGC
- Soundcard spur removal algorithm made more aggressive.
- Fixed problem with data file analyser showing incorrect times in the Y-axis (UTC / localtime issue).
- ECSS now tracks the centre frequency of the AM transmission (feature inadvertently omitted).
Download :
- Client Application : Preview 7 (build 1280) is available here.
- Client Application : Preview 6 (build 1279) is available here.
Price: Freeware
