Description

The Software Defined Radio revolution brought great flexibility in VHF and UHF reception. Today we offer the best wide band receivers which address these needs. We also provide a high performance extension for weak-signal wide band reception on HF – something other competing solutions in our price segment fail to address efficiently.

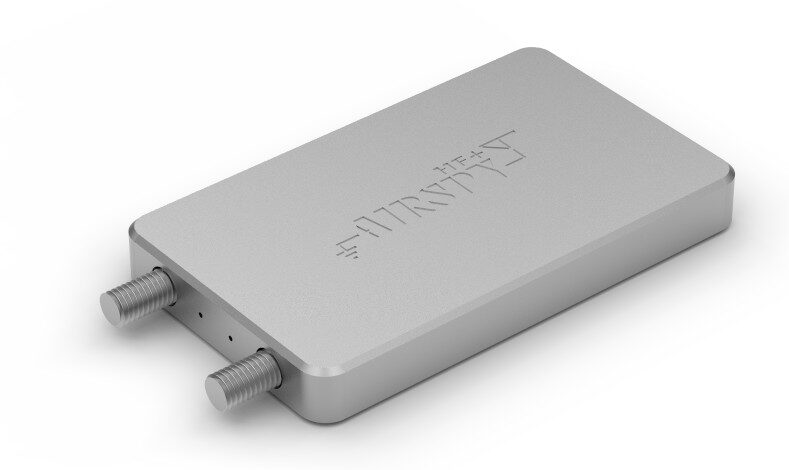

Airspy HF+ is a paradigm shift in high performance HF radio design. It is a joint effort between Airspy, Itead Studio and some famous chip maker to build a state of the art SDR for HF and VHF bands.
Like most high-end HF receivers, the HF+ uses very high dynamic range ADC’s and front-ends. But unlike the current offerings in the market, it also brings more frequency agility by using high performance passive mixers with an excellent overtone rejection structure. No external band aid filters are required like the lower end HF receivers, which makes it the ideal companion for light portable high performance operation.
Both the architecture and level of integration achieved in this design allow us to bring top performance reception at a very affordable price.

You like it? Share your spectrum with your friends!

We concentrated state of the art DSP and networking techniques into our SpyServer software to allow multiple users to stream high quality IQ data from the same receiver at the same time. No compromises in the quality were made like it is usually done in Web SDR interfaces. You get actual IQ data you can process with your plugins and extract the last bit of information out of it.
The server software is highly scalable and can run on computers as small as the $7 Orange Pi Zero to top end 64bit servers with multiple cores/cpus, passing by the popular Raspberry Pi series.

HF Tuner

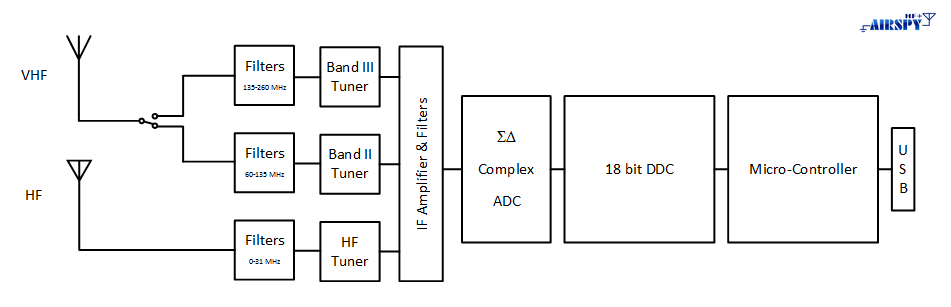

Airspy HF+ achieves excellent HF performance by mean of a low-loss band filter, a high linearity LNA, a high linearity tunable RF filter, an over-tone-rejection (OTR) mixer that rejects up to the 21st harmonic and an IF filter.
The 6 dB-stepped AGC gain is fully controlled by the software running onto the DSP which optimizes the gain distribution in real time for optimal sensitivity and linearity. OTR is a key issue in wide band HF receivers because of the large input signal bandwidth. The output of the IF-filter is then digitalized by the IF ADC for further signal processing.

VHF Tuners

Excellent VHF performance is also achieved by using optimized signal paths composed by band filters, high linearity LNAs with a stepped AGC and an over-tone-rejection mixer and IF filters optimized for their respective bands.
The amplifier gain is switchable in 3 dB-steps and is fully controlled by the AGC processing running onto the DSP. The RF signal is converted to baseband by a high linearity passive mixer with overtone-rejection structure. The low-IF signal is then converted into the digital domain by the IF ADC for further digital signal processing.

IF Digitalization

The IF digital to analog converter has a 4th order multi-bit topology; it features very high dynamic range and linearity. The IF-ADC sampling frequency is determined by a control algorithm running on the DSP. This advanced technique changes the sampling frequency depending on the tuning frequency with the goal of avoiding the disturbances generated by the switching discrete-time sections of the IF-ADC.

Digital Down Converter

Once the IF signal is digitalized, the high sample rate I/Q stream is then frequency translated and processed with cascaded CIC and FIR decimation stages. After every stage, the sample rate is reduced and more the resolution is increased. The final signal at the output has 18bit resolution and the alias rejection performance is 108 dBc. The data is then scaled to 16bit and sent to the Micro-Controller for streaming over USB.

Use it over the network!

Connect as many SDR applications as needed to the HF+, over the Internet or in your own local network with near zero latency thanks to the new SPY Server software.
This setup basically brings all the flexibility of Web based SDRs while still benefiting from the full power of desktop applications. The IQ data is processed in the server with state of the art DSP and only the required chunk of spectrum is sent over the network. What is sent is the actual IQ signal, not compressed audio. This means you can use all your favorite plugins to process the IF, eliminate noise and perform heavy lifting of the signals as you are used to do with locally connected SDR’s.
We have a tradition of building multi-tools, so we made sure the SPY Server runs on 32/64bit Windows and Linux on Intel and ARM processors without any compromises. Low cost Raspberry Pi 3 and Odroid boards are in the party.

Technical specifications

  • HF coverage between DC .. 31 MHz
  • VHF coverage between 60 .. 260 MHz
  • -138 dBm MDS at 500Hz bandwidth in HF
  • -142 dBm MDS at 500Hz bandwidth in VHF
  • +26 dBm IIP3 on HF at maximum gain
  • +13 dBm IIP3 on VHF at maximum gain
  • 110 dB dynamic range in HF
  • 95 dB dynamic range in VHF
  • 120 dB Image Rejection
  • 0.1 dB Spectrum Flatness
  • 0.5 ppm high precision, low phase noise clock
  • 660 kHz alias and image free output
  • 18 bit Digital Down Converter (DDC)
  • +10 dBm Maximum RF input
  • Very low phase noise PLL (-110 dBc/Hz @ 1kHz separation @ 100 MHz)
  • 2 x High Dynamic Range Sigma Delta ADCs @ up to 36 MSPS
  • No Silicon RF switch to introduce IMD in the HF path
  • Routable RF inputs
  • Wide Band RF filter bank
  • Tracking RF filters
  • Sharp IF filters
  • Smart AGC with real time optimization of the gain distribution
  • All RF inputs are matched to 50 ohms
  • 4 x Programmable GPIO’s
  • No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10
  • Industrial Operating Temperature: -45°C to 85°C

Typical Applications

  • High Performance Networked HF/VHF Radio
  • Ham Radio (HF + 2m)
  • Short Wave Listening (SWL)
  • AM DX
  • FM DX
  • VHF-L TV DX
  • Remote Telemetry Radio Receiver
  • Low Bands IoT

Supported platforms

  • Windows Vista, 7, 8, 8.1 and 10 (For Windows XP, please contact us)
  • Linux
  • *BSD
  • OSX

Minimum hardware requirements

  • 1GHz Pentium or ARM
  • 1GB of RAM (to run your own OS, HF+ barely needs 1MB of memory)
