Features:
1. LTC2208 16bit ADC@130MSPS
2. Dual RF Input for 1kHz-64MHz and 64-1700MHz
3. HF Real-time Bandwidth 64MHz
4, VHF Real-time Bandwidth 10MHz
5. 0.5ppm VCXO
6. ATT Adjustment Range -32dB to 0dB
7. VGA Adjustment Range -11dB to +34dB
8. External 27MHz Reference Clock Support (Jumper)
9. 3.3v Software Switched Bias-Tee HF/VHF Independent Control

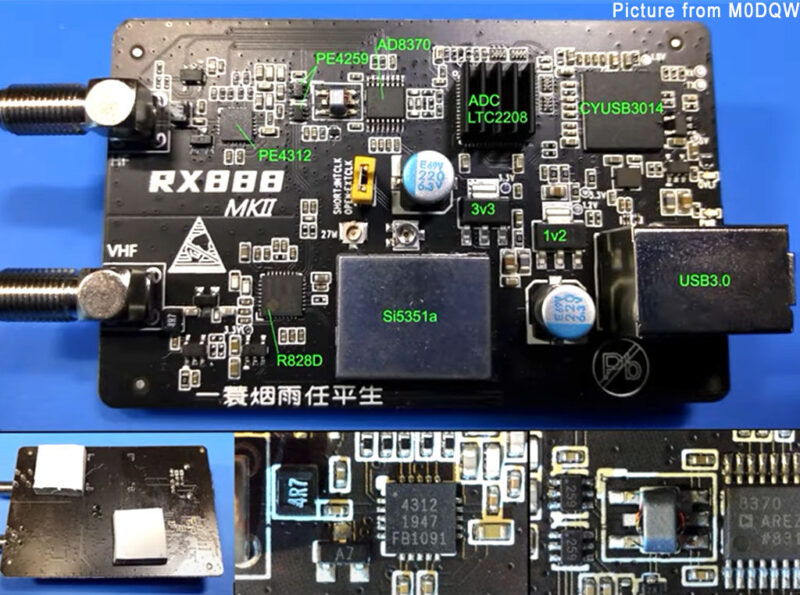

Improvements from RX888 MK1:
1. LNA to VGA (Better Attenuation Control)
2. Enhanced 64MHz LPF (Improves Image Rejection)
3. R828D instead of R820T2(For 16bit ADC)
4. External 27MHz Reference Clock Selector
5. Tunable Attenuation in the HF Path up-to -31.5dB
Software Compatibility:
1. HDSDR
2. SDR Console
3. SDR#
4. SDR++
ALL HF Bands at the SAME time with the RX888 Mk2
Specification:
Working Frequency: 1kHz to 64MHz (HF+6M)
64MHz to 1.7GHz (VHF+UHF)
ADC: LTC2208 16bit ADC@130 MSPS
ATT Range (HF): -32dB to 0dB
VGA Range (HF): -11dB to +34dB
Frequency Stability: 0.5 ppm with a VCXO
Bandwidth: 64MHz (HF)
10MHz (VHF/UHF)
Working Current: 5V/2A
PC Interface: USB 3.0 Type-B
Size: 100(L) x 74(W) x 35(H) mm
Weight: 180g
Resources:
1. ExtIO_file: https://github.com/ik1xpv/ExtIO_sddc
2. Download Driver
Package Includes:
1 x SDR Radio
1 x USB3.0 Type-B Cable
Click more read about RX888MKII SDR
Price: $169.99 (EU VATs Exclude)
