The RIGrunner 4005i enables amateur radio, emergency communications systems and repeater site operators to monitor and control their DC power distribution systems from any internet-ready mobile device or PC.
Features
Provides internet based monitoring and control of 12 VDC power distribution
Delivers up to 40 amps total through 5 outlets while transmitting, 30 amps continuous duty
Each outlet features independent on/off control and user configurable current trip point, 1A to 40A
RJ45 Ethernet port standard, WiFi option available
Integrated web server for monitoring and control
Can be configured to issue alarm email when outlet trips off

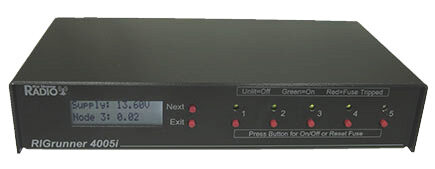

Front mounted LCD display and indicator LEDs for local monitoring of status, input voltage and current draw from each outlet

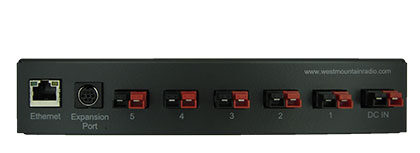

Rear mounted Anderson Powerpole® connectors with locking clips
Low profile for 1U 19″ rack or horizontal shelf mounting option
Rack mounted version custom built to order, contact West Mountain Radio for details
Includes in all Models
(4) Rubber Feet
(4) 3M Adhesive Pads
(1) 6-pair pack of 30A Powerpole connectors
(6) Retention Clips
RJ45 Ethernet Cable
Owner’s Manual
Rack Mounted Model
1U 19″ Rack Bracket and Faceplate
WiFi add-on module with antenna
Software

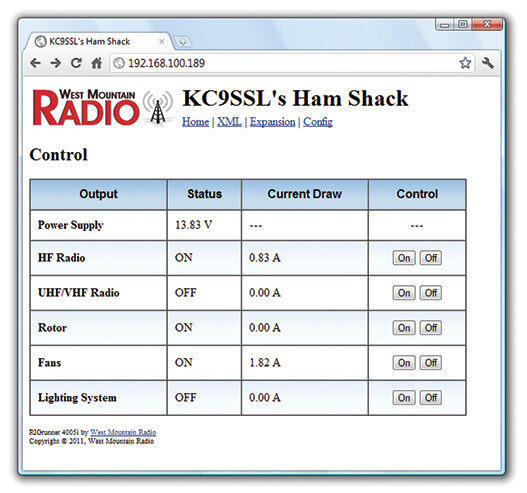

The integrated web server enables internet based monitoring and control of your DC power distribution system. It includes the following capabilities:
Input voltage monitor
Current draw monitoring through each outlet
Individual outlet on/off control with trip indication
Configuration of current limits for each outlet, 1 to 40 amps
Generation of alarm email in case of current limit trip
RIGrunner 4005i Owner’s Manual
Price: $279.95 USD
