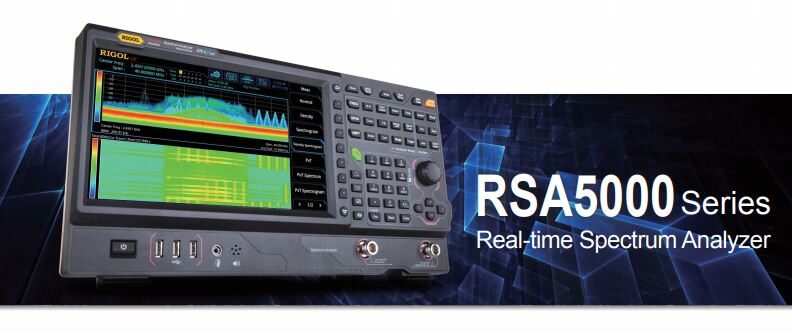

Rigol RSA5000 Real-time Spectrum Analyzer

Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference. Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA5000 combines industry leading realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.

• Ultra-Real technology
• Frequency: up to 6.5 GHz
• Displayed average noise level (DANL): <-165 dBm (typical)
• Phase noise: <-108 dBc/Hz (typical)
• Level measurement uncertainty: <0.8 dB
• 6.5 GHz tracking generator
• Min. RBW 1 Hz
• EMC filter and quasi-peak detector
• Various measurement functions
• Multiple measurement modes
• Up to 40 MHz real-time analysis bandwidth
• Multiple trigger modes and trigger masks
• Density, Spectrogram, and other display modes
• PC software options
• 10.1” capacitive multi-touch screen, supporting touch gestures
• USB, LAN, HDMI and other communication and display interfaces

Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the
analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram,
Density, and PVT. Besides, FMT function is also available.

The Ultra-Real technology has the following features:
Seamless analysis
◎ Seamless I/Q data acquisition in the analysis bandwidth
◎ Seamless spectrum analysis FMT
◎ Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum Composite displays
◎ Spectrogram for gap-free display of the spectrum
◎ Density for you to visualize how frequently signals occur
