Description:
NanoVNA Bundle is an open hardware vector network analyzer developed by ttrftech (https://github.com/ttrftech/NanoVNA) that allows you to test most of your RF devices effortlessly. Part of the proceeds from this bundle will be paid to the ttrftech team for further development of NanoVNA. The RF sections are EMI shielded to reduce potential interference and improve the accuracy of the instrument.
NanoVNA has a 2.8 inch TFT touch screen with a simple interface that allows S parameters (S11 and S21) to be measured. SWR, Phase and Smith chart functions.
With only 85mm x 54mm, PCB case protection and a 400mA battery, NanoVNA is ideal for portable measurements and operation.
Measuring capacity of at least 50 kHz to 900 MHz and beyond this range with suitable custom firmware (note that the technical data may be lower outside the intended operating frequencies). The frequency accuracy is 0.5ppm or better, RF output power is -13dBm and SWR <1.1.
NanoVNA can also communicate with your PC via USB-C (serial mode). USB cable is included.

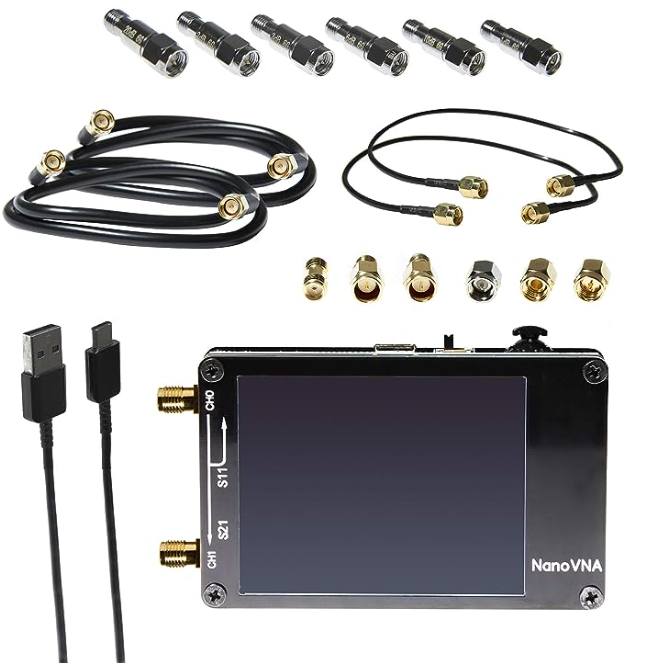

Includes:
- NanoVNA with EMI shielding and 400mA battery
- 6-piece SMA attenuators (1dB, 2dB, 3dB, 6dB, 10dB, 20dB)
- 3 Piece SMA Calibration Kit
- 2-piece SMA quick connect adapters (pluggable SMA adapters)
- SMA Female to SMA Female Adapter
- 2pcs RG174 Cable 30cm
- 2 Piece LMR200 Cable 60cm
- 30cm USB C Data Cable
- Plastic case

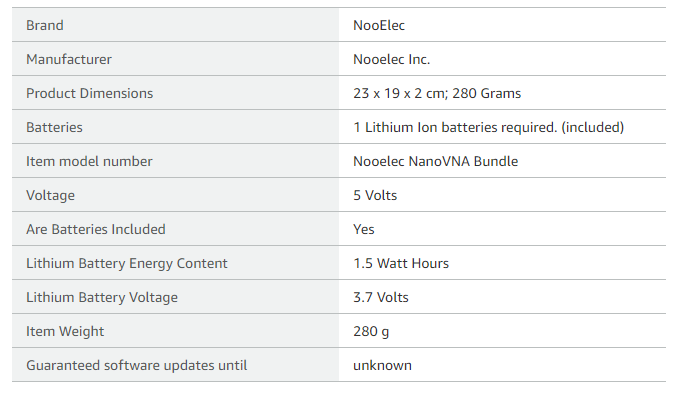

Tech details:
Price: €158
