• Frequency Coverage: 144-146MHz band.
• IF in/out frequency : 28-30MHz
• Power Output:
ME2-T 30W out continuous carrier.
ME2-HT 60W out continuous carrier.
• IF power input: 0-2V on 50Ohm (+20dBm max) or 5W on case built in IF attenuator
• Harmonic Output Suppression: Better than 40 dB below rated output.
• RX gain: cca.23dB
• RX noise figure:
ME2-T <2.5dB
ME2-HT <1.5dB
• RX intercept point (IP3):
ME2-T 0dBm
ME2-HT +14dBm
Available types:

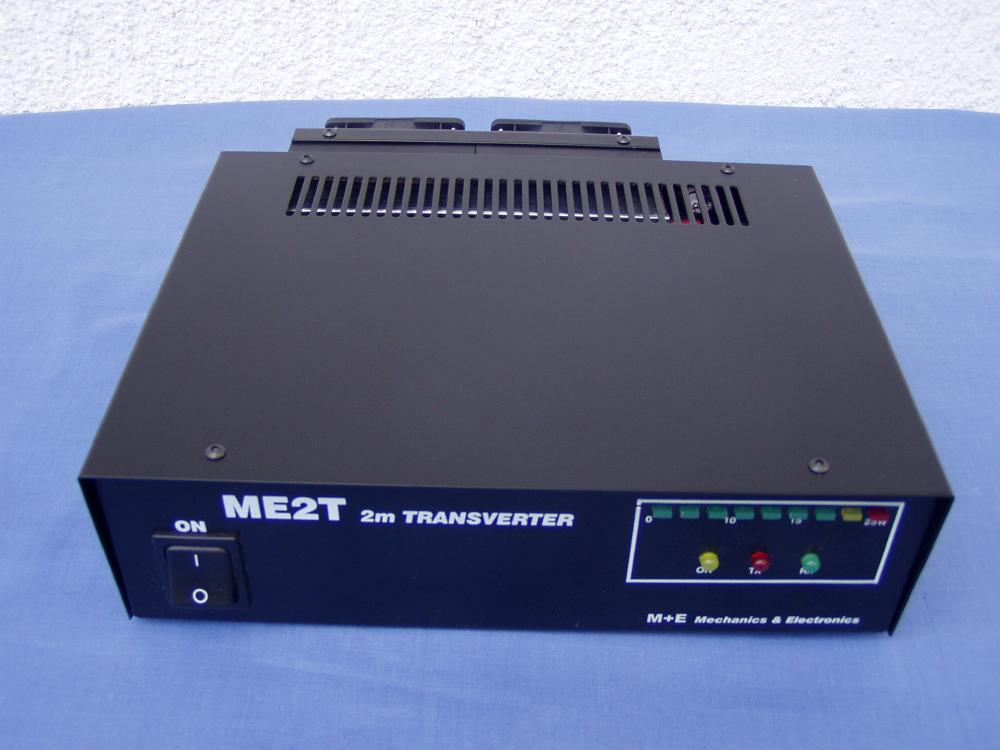

ME2-T : 30W, 0dBm, BF981 front
ME2-T+: 30W, +14dBm, 2XBF988 front
ME2-HT: 60W, +14dBm, 2xBF988 front
ME2-HT+: 60W, +14dBm, 2xBF988 front
Heating fan module available for every type.( on case 30W out types is option)
• Input and Output Impedances:
– ant connector 50 Ohm unbalanced, UHF or N type connector.
– input IF connector BNC type
– output IF connector BNC type
– Output (antenna) impedance matching capability: VSWR up to 1:2
• Power supply: external, 13.8V/5A DC or 13.8V/10A on case HT types.
• Size & Weight : WxDxH: 240x210x70mm ~1.5kg
• Operating environments:
– temperature range: 0…+50 degs.Celsius;
– humidity: up to 95% @ +35 degs.Celsius.
