Description:
The LDG Digital Wattmeter is based on a QST construction article in the July 99 Issue. This Wattmeter is a microprocessor controlled, multi-sensor power monitoring system that covers HF, VHF, and UHF frequency spectrums.
A multifunction display allows full control of the meter’s menu system. Up to four remote sensors can be connected to monitor multiple transmitters. For example: you could have 2 HF radios, one tuned for QRP; a VHF and a UHF radio all connected at the same time. You recover a bit of shack space having to have only one wattmeter. Because it comes with a mounting bracket, it can easily be mounted under a shelf or dash.
Your callsign is easily programmed into the display and alarms are fully setable. The DWM-4 is only available in fully assembled form and comes with 2 sensors, calibrated to your choice of 3 frequency ranges: HF, HF(QRP), VHF, or UHF.
The DWM-4 is a beautiful addition to the shack or mobile.
Specifications:
Available fully assembled and aligned (includes 2 sensors)

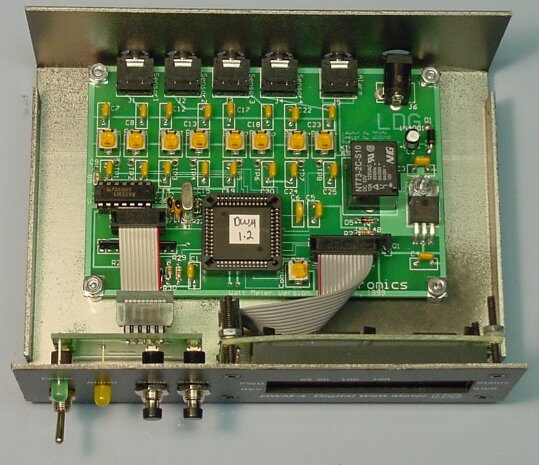

Board Size: 3.5 x 4.0 inches
Enclosure: 6.0 x 4.0 x 2.0 inches
Sensor Size (HF, QRP, VHF, UHF): 4.0 x 2.0 x 1.5 inches
High Power Sensor Size: 4.5 x 2.75 x 1.5 inches
Sensor Connections: SO-239
HF Power Ranges: 15, 150 watts
VHF/UHF Power Range: 150 watts
Power Requirement: 11 to 14 volts DC, 75mA
Measures Peak or Average
Bar or Numeric Readout
LED and Relay Variable Alarm System, 1:1 to 30:1
Built in Error Checking
Software Upgradable
Price: TBD
