LAN-IQ SDR Features:
● 50 kHz to 1700.00MHz continuous frequency range
● Direct sampling
● DDC – Digital Down-Conversion
● 12- bit 76.8 MSPS A/D conversion
● Stand Alone mode (AM, SAM, CW, SSB, NFM, WFM stereo, BPSK, QPSK , RTTY, FT8 demodulators)
● Up to 2.2MHz recording and processing bandwidth
● Waterfall display functions, when used with appropriate software
● Recording and playback, when used with appropriate software
● Sensitivity – MDS -136 dBm at 500Hz bandwidth (0.03MHz-35MHz)
● Sensitivity – MDS -143.5 dBm at 500Hz bandwidth (50MHz-435Mhz)
· USB 2.0 (Full Speed) interface
● LAN interface for remote access
● Compatible with: Linrad, Winrad, HDSDR, Studio1, SDR Console
(SDR-radio), CuteSDR, SdrDX, Quisk, PowerSDR_mrx
● Powered from USB or external power supply 7-10VDC
● Dimensions 120mm deep x 78mm wide x 27mm high
● 3.5” LCD screen, with resistive touchscreen
● Unit cost – $374 (default configuration, optical tuning knob)

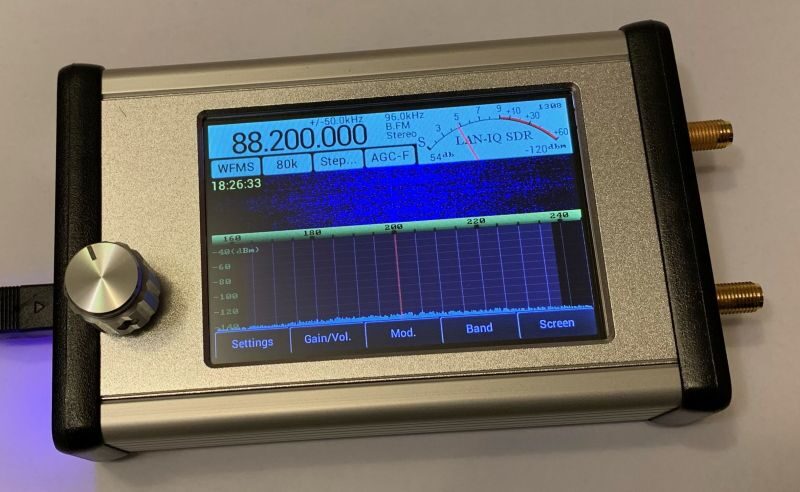

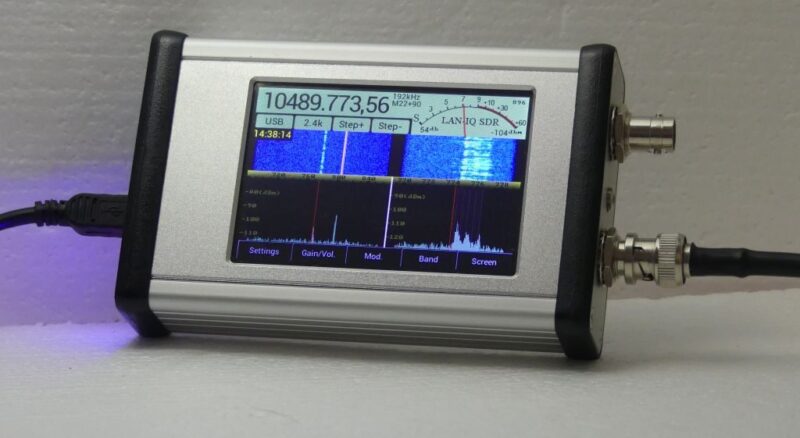

LAN-IQ SDR is stand-alone, direct sampling Software Defined Receiver (see picture above) it has ability to send it’s received I/Q stream in three different modes:
– Stand-Alone (Digital processing, filtering , decoding is implemented inside SDR)
– Network (LAN)
– USB
LAN-IQ SDR has the following specification:
Frequency Coverage:
0.03MHz-35MHz & 35MHz-1700MHz
Noise Figure: ~11dB (for 1MHz-35Mhz range and maximum RF gain 35dB)*
*input VGA (Variable Gain Amplifier) has variable Gain from -10dB up to +35dB
Noise Figure: ~3.5dB (for 50MHz-435Mhz range and maximum LNA/MIX gain )
MDS: -136 dBm at 500Hz bandwidth (0.03MHz-35MHz)
MDS: -143.5 dBm at 500Hz bandwidth (50MHz-435Mhz)
Output data format: two 16-bit I/Q channels (audio stereo stream emulation)
Maximum Receiving Bandwidth:
BW = up to 2200kHz (for 2400kHz sample rate) – using Network connection
BW = up to 706kHz (for 768kHz sample rate) – in stand-alone mode
BW = up to 230kHz (for 250k samples/s sample rate) – using USB connection
RF ADC sampling rate: 76.800MHz
Power Supply Voltage Requirements:
5V (supplied from the PC’s USB bus or from external) or from external power supply able to provide 5VDC +/-0.2V).
7.0-10V DC to the DC power connector.
Power Supply Current Requirements:
– up to 850mA (max. LCD brightness, network cable connected, VHF/SHF band)
Price TBD
