Description:

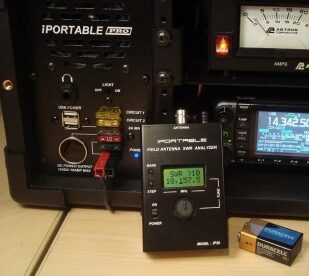

The iP30 iPortable™ Antenna SWR Analyzer is designed for field use. This compact battery powered unit has an easy to read frequency display and measures SWR in the HF Band. The SWR readings quickly show you the actual VSWR measurement. This is the easiest way to adjust your portable or base station antenna to be best matched for your radio.
SPECIFICATIONS:
Frequency Coverage 400kHz – 35Mhz (continuous)
Band Switch: Quickly change Bands 160M,80M,60M,40M,30M,20M 17M,15M,12M,10M,
Source Impedance: 50-Ohms
RF Output Level : 1.7Vpp (typical)
Direct Digital Synthesis (DDS) Technology
10-Bit A/D converter
SWR Range : 1.0~9.9
Impedance Range: 10~500ohm
Weight: 7oz
Compact size: 3.5”(H) x 2.5”(W) x 1.25”(D) (w/o knob, connector)
Battery : 9V Alkaline Battery (Battery NOT included)
External Power : DC 7-14V
Power Consumption : < 120mA
Sleep mode draw : 4 mA Unit goes to sleep after 30 sec. Battery mode only.
NOTE: Unit will NOT go into sleep mode using external power.
MADE in the U.S.A
CONNECTORS:
· External Power Connector: 2.1mm center positive
· Antenna Connector: BNC
CONTROLS:
· Tuning Knob : Changes Frequency
· Band Switch: Quickly changes Bands
· Step Size Switch: 10Hz, 100 Hz, 1kHz, 10kHz and 100kHz
Sleep time adjust
· Power Switch: “unit ON”
Price: $199.99 Plus $10.00 Shipping and Handling
