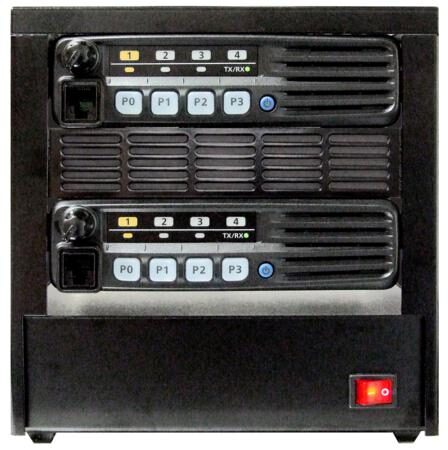

ICOM PMR SRP 25 Watts Repeater
Designed to enhance coverage of a two-way radio system, the cost effective SRP repeater series uses a combination of Icom IC-F5012/F6012 entry level mobile radios and can be used as a VHF to VHF (SRP-V11), UHF to UHF (SRP-U11), or cross band repeater (SRP-X11).
The SRP repeater instantly retransmits received audio without any noticeable delay. All repeaters in this series provide a stable 25 watt output power allowing a radio scheme to be boosted beyond the range of normal Private Mobile Radio (PMR) networks.
The SRP Repeater Series comes complete with housing (including 240V PSU) to mount the repeater. The SRP is incredibly flexible so that you can install the repeater in a vehicle, an office, or a temporary location.
Specifications:
Available as a VHF, UHF or crossband (VHF and UHF) repeater
Features two IC-F5012/F6012 commercial mobile radios
Extremely compact and portable.
Price includes housing and 240V PSU
Two antenna working as standard
Optional duplexer can be fitted
Can run from a 12 volt supply.
Vehicle or desk-mountable.
CTCSS signalling.
Supplied as standard with HM-152 Fist microphone

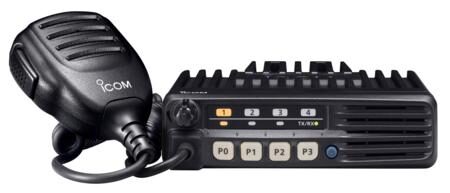

VHF/UHF Commercial Mobile Series
The new IC-F5012 mobile transceiver series is the successor to Icom’s best selling IC-F110S series and is designed as a simplified counterpart to Icom’s IC-F5022 series. This series has many attractive features and an an uncomplicated LED display that makes it ideally suited to small to mid sized radio systems such as taxi operators, construction companies, security firms and farmers.
Multi 5-tone function built-in
The IC-F5012 series has built-in 5-Tone, CTCSS and DTCS signalling capabilities for group communication. The IC-F5012 series can decode up eight 5-tone codes on a channel. The following actions are programmable to respond to each tone.
• Beep sound
• LED lighting
• Answer back call
• Auto TX
• Stun, kill revive
• Scanning
• External output*
* External device connection such as a horn honk, buzzer, etc is required.
Internal option units available
The IC-F5012 series has an internal 40-pin socket for an optional unit so that you can use the optional UT-109R or UT-110R voice scrambler units The UT-108R DTMF decode unit is also available.
4W (typical) front mounted loud speaker
The IC-F5012 series has a 4W (typical) front mounted speaker providing the operator with clear audio during operation.
Easy to use
The IC-F5012 series has 4 programmable buttons. 8 memory channels can be easily selected with the programmable buttons. Backlit buttons make night time operation simple.
Specifications:
Entry level mobile with a very competitive price
Simple operation with 4 programmable buttons
VHF (IC-F5012) & UHF (IC-F6012) versions available
MIL-STD-810-F rugged body
Enhanced scanning features
Multiple signalling modes built-in 5-Tone, CTCSS, DTCS, MDC 1200* and BIIS 1200* (* Limited functions only)
4W (typ.) front mounted speaker and independent volume knob
2 year warranty on transceiver, 1 year warranty on accessories
Enhanced Scan features
• Priority scan allows you to monitor one or two priority channels while scanning other non-priority channels.
• The Tx channel and talk back functions allow you to make a quick response while scanning.
• Nuisance delete … User can temporary skip a busy channel from the scanning list.
• Monitor key action … User can stop a scan when pushing the monitor button.
External memory channel control with optional ACC cable
The optional ACC cable allows you to connect various external devices like a PC, external speaker, or even vehicle horn. It can provide ignition sense function, external memory channel control as well as the external PTT, audio output and modulated signal input. The OPC-1939 is a D-SUB 15-pin type and the OPC-2078 is a D-SUB 25-pin type.
Other features
• BIIS PTT ID transmission
• ±2.5ppm frequency stability
• DTMF autodial memories
