Barrett Communications – HF and VHF Tactical Radios
Barrett Communications design and manufacture a complete range of secure HF and VHF tactical radios. These equipment adapts easily from manpack to vehicle mobile and base station configurations.
Specifications :
HF systems for air traffic control
Remote sited HF transmitters and receivers linked by landlines or microwave
LAN based control systems for remote sited HF transmitters and receivers
Operator consoles
Custom built interfaces, control systems, operator positions.
MIL-STD HF data systems including 5066 stack based systems.
Integration of new HF transmitters and receivers into existing systems.
Turnkey mission based installations
Vehicle tracking systems
High power transmitters for GMDSS systems
High power HF email and data systems
Military HF networks
All of Barret’s products are supported with a complete range of accessories and antennas to suit any tactical requirement at a competitive price.

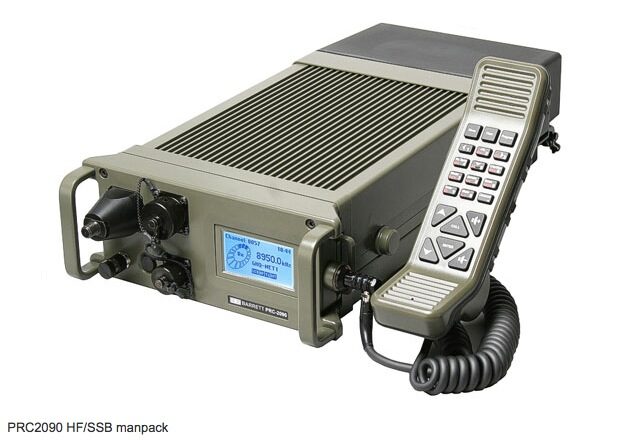

PRC-2090 tactical HF/SSB transceiver system
The PRC-2090 Tactical HF/SSB transceiver system is a multi role HF communications system that can be deployed as a 30W manpack, a 100 Watt vehicle mounted system or a 100W base station.
The hub of the system is the lightweight PRC-2090 HF/SSB manpack that includes an integrated automatic antenna tuner, a sophisticated battery management system integrated into each Li-ion battery cartridge, all mode operation, ALE to MIL-STD 188-141B, optional internal MIL waveform modem with 5066 stack ,encryption and frequency hopping.
The PRC-2090 transceiver is equipped with a demountable display that is designed to be attached to webbing, allowing the operator to make calls on the move or to be used remotely from the transceiver when used in temporary base stations.
Advanced frequency hopping
ALE to MIL-STD 188-141B (FED STD 1045)
Display removable for wearing on webbing
Rugged custom handset with full keypad
5.2 kg with 10 Ah battery
Vehicle docking station with full 100 W RF power output
Fully immersible

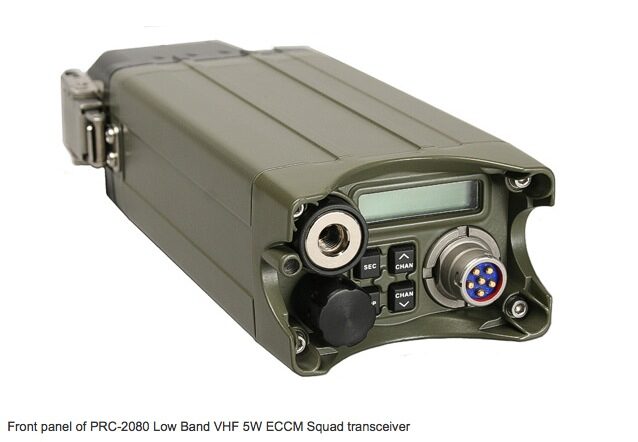

PRC-2080 tactical low band VHF multirole transceiver system
The PRC-2080 military transceiver system is a low band VHF communication device specifically designed for multi-role tactical operations. It is an extremely compact and lightweight unit, featuring only essential controls for ease of operation. The PRC-2080 is available with a secure fixed frequency (FF) digital encrypted mode, an anti-jamming digital encrypted frequency hopping (FH) mode and a digitally encrypted free channel search (FCS) mode. It is manufactured to comply with MIL-STD-810F for immersion, shock, vibration, dust and temperature rating specifications.
The PRC-2080 (ECCM) encrypted and frequency hopping options represent a significant breakthrough in the field of tactical military communications and the total package addition of the ECCM options costs as little as one quarter of competing military transceivers.

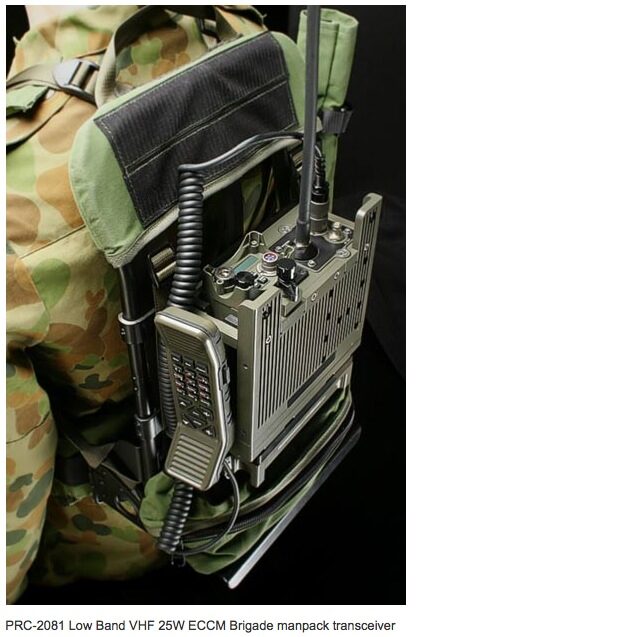

The PRC-2080 tactical system addresses four main roles. As a 5W backpack used with a short antenna it is suitable for squad/platoon level applications. With the PRC-2080 deployed in the 25W docking station and fitted with a full length tactical whip antenna it becomes capable of use at company/battalion/brigade level for use over ranges of 3 km to 25 km. When deployed in the vehicle docking station and combined with the 50W VHF amplifier the systems as in the PRC-2082, PRC-2083 and PRC-2084 can be used in vehicle, base station and rebroadcast applications.
Compatible with PRC-77 & equivalents
Advanced DSP voice & data signal processing
Encrypted & frequency hopping security options
High speed encrypted data
Selective & group calling
Messaging & data transfer
Tactical rebroadcast mode
Smart peripheral detection system
Available as 5W squad radio, 25W brigade radio, 50W mobile
