IC7760 HF/50 MHz 200W Transceiver
From ICOM ? X60
To NEW IC-7760 HF/50 MHz 200W Transceiver ( X60 )
What is the IC-7760? It’s not just a 200 Watt transceiver. It will give you a new innovative shack style including the full control head with dual displays and separated RF deck. The DIGI-SEL and the preamp, Digital Pre-Distortion clean transmit signal. The IC-7760 will be a new power of DXer to establish your new operating style.
Promotion Video by ICOM
The IC-7760 offers a new “innovative Shack Style” consisting a full control head with separate RF deck, connected through a control cable for greater installation flexibility. The supplied control cable is 3 m, 9.8 ft long, and by using a commercially available LAN cable, the RF deck can be installed in a more remote location. Furthermore, the control head and RF deck can be connected through a wired home LAN connection for remote operation. This simple configuration does not require a PC, and can be easily operated from nearly anywhere in the home as long as a LAN connection is available.

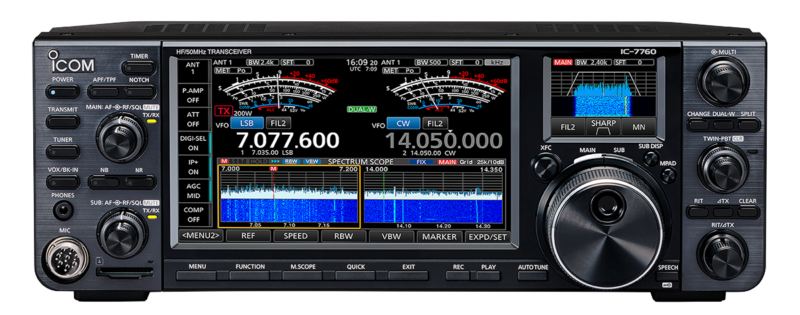

Main and Sub dual displays with touch screen function are provided for improved visibility of information and smooth operation. The 7-inch main display centralizes information necessary for operation, such as Main/Sub frequencies and the setting/operating status of each function. The newly adopted 2.4-inch sub-display shows filter effects, various meters, and band stacking register keys.
DIGI-SEL (Digital Pre-selector) and the preamp can now be used together. DIGI-SEL prevents suppression of strong out-of-band signals, while the preamp improves receiver sensitivity. It also maximizes the dynamic range of the A/D converter to avoid signal overflow.
The IC-7760 offers a new Innovative Shack Style, combining 200 W of high output power with clean signal transmission assisted by the Digital Pre-Distortion feature, and convenient functions to support comfortable operation, making it ideal for contests and DX hunting.
Major features:
– The two-piece configuration of the controller and RF deck increases flexibility in installation.
・Supports remote operation via home LAN connection (wired)
– Equipped with two displays that support touch operation: 7-inch wide and 2.4-inch.
– By using DIGI-SEL in combination with a preamplifier, sensitivity is improved and unintended signals are eliminated.
– Carefully selected RF direct sampling devices and optimized programs.
– Achieves full power and full duty with 200W output
– By adopting DPD technology, excellent intermodulation distortion characteristics and clean transmission waves are achieved.

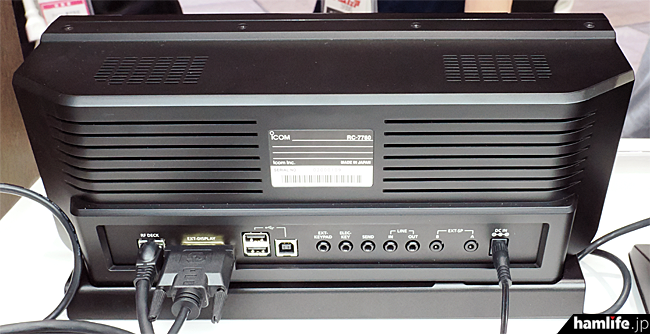

Photo by hamlife-jp
Photo by hamlife-jp
Features and Functions
- Full control head with separate RF deck for greater installation flexibility
- Supports in-house remote operation through a wired LAN*1
- Two displays, 7-inch wide and 2.4-inch, with touch screen operation
- DIGI-SEL and the preamp can work at the same time
- Advanced RF direct sampling system using FPGA processing
- 200 W full power and full duty *2
- DPD (Digital Pre-Distortion) for excellent IMD characteristics and clean transmitted signals
1 Communication between the controller and the RF deck depends on the network environment in which it is used. Gigabit Ethernet is recommended. The controller can be used on a different network segment than the RF deck such as over a network switch.
2 200 W output and 1-hour continuous transmission with 100~200V AC input (at ambient temperature 25 ℃.)
More Details in Brochure : IC-7760_A4
Price: ~ from 5.500 USD

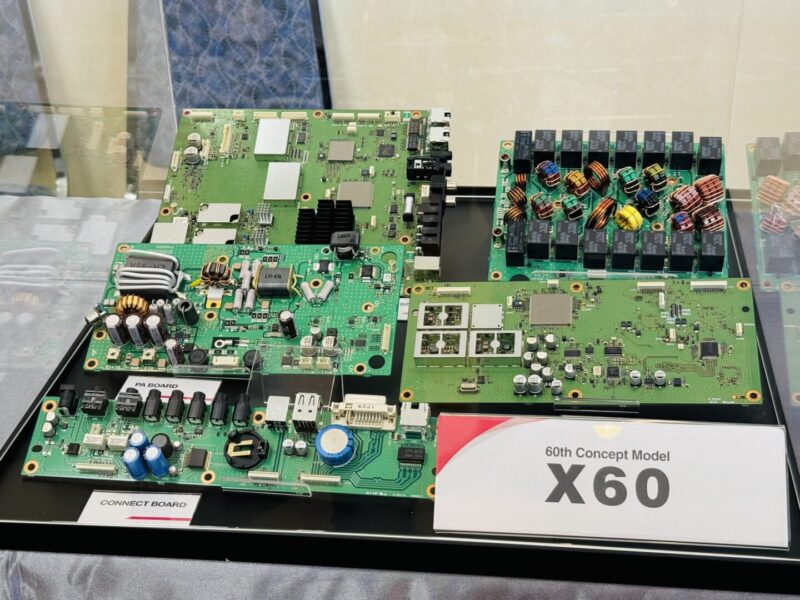

Pics credit by JJ0VNP
