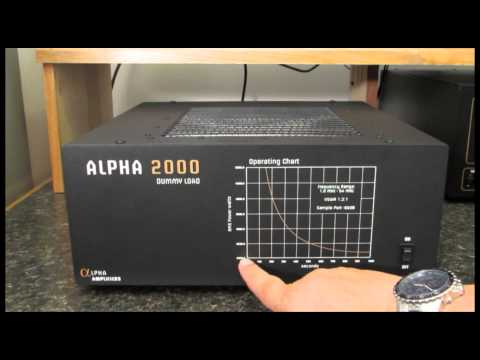

The Alpha 2000 dummy load is capable of dissipating four times the legal limit (6 kW) for 2 minutes and legal limit (1500 watts) key down, forever. It covers the 160 meter to 6 meter bands (actually 1 Mhz – 60 MHz continuously). It is a dry dummy load intended for testing amplifiers and station conditions. Two fans on the rear of the unit are automatically turned on when the internal temperature reaches 120 F (49 C). The unit runs off a universal AC supply. Simple to operate and use, the dummy load includes an RF sample output of -60 dBc.
- Dissipation Capacity: 6000 watt burst, 1500 watts Full Legal Limit continuously
- Band/Frequency Coverage: 160 meters through 6 meters continuous / 1 Mhz – 60 Mhz continuous.
- SWR: SWR is flat across all HF Amateur bands
- Cooling: Forced-air/convection cooling. Temperature controlled fans turn on at 120 F (49C)
- Power: 12 VDC Universal 1.5 Amp supply (provided) or 13.8 VDC station supply providing 1.5 A of capacity
- Dimensions: 14.25″ Wide, 6.25″ High (incl feet), 14.5″ Deep
- Simple Operation: Plug in power supply, attach RF source, turn on the dummy load power switch, apply RF energy to load.lpha 20
Weight: 11 lb
Price: $875.00
