Buddipole Deluxe Package

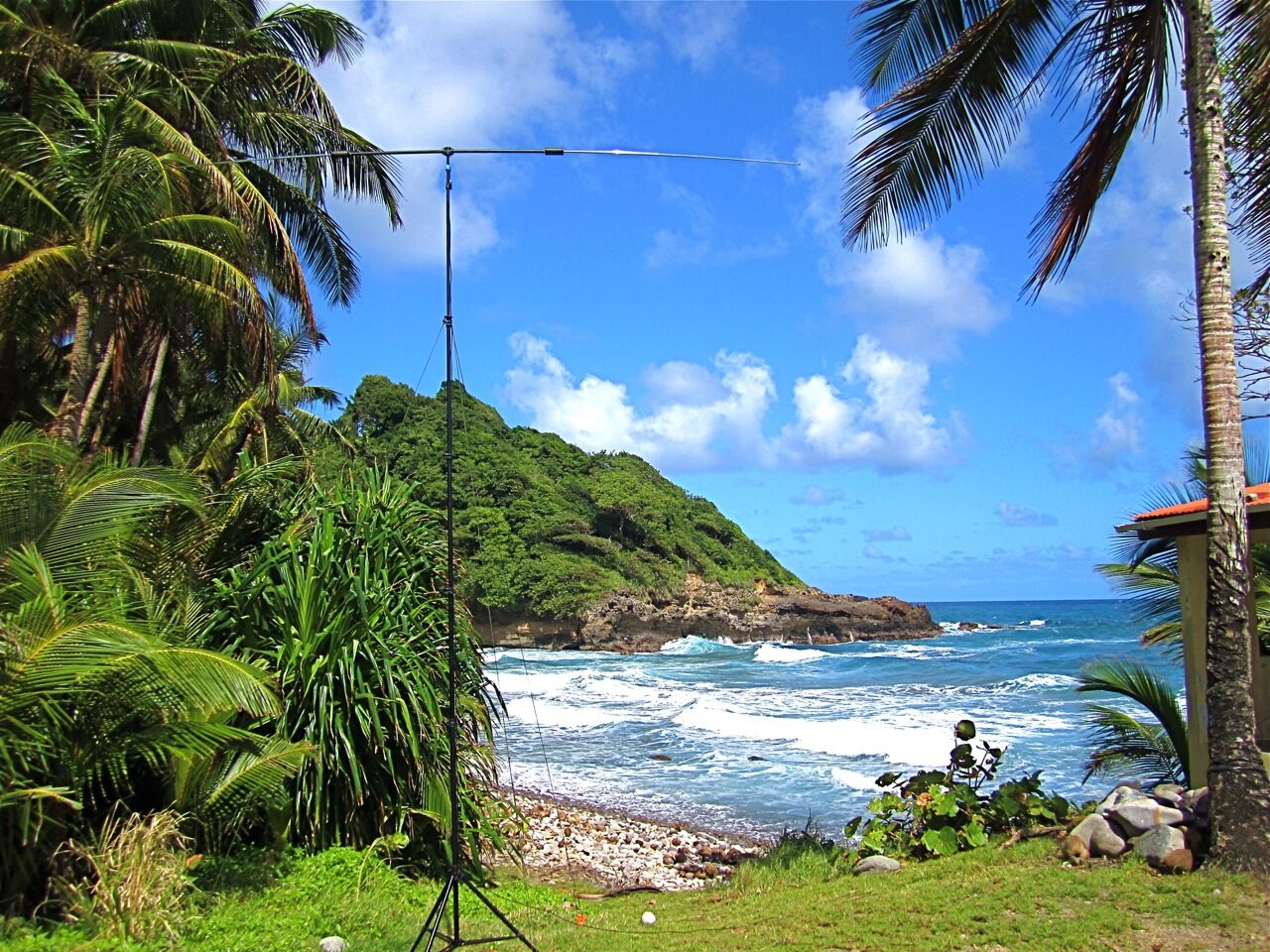

Photo by Buddipole

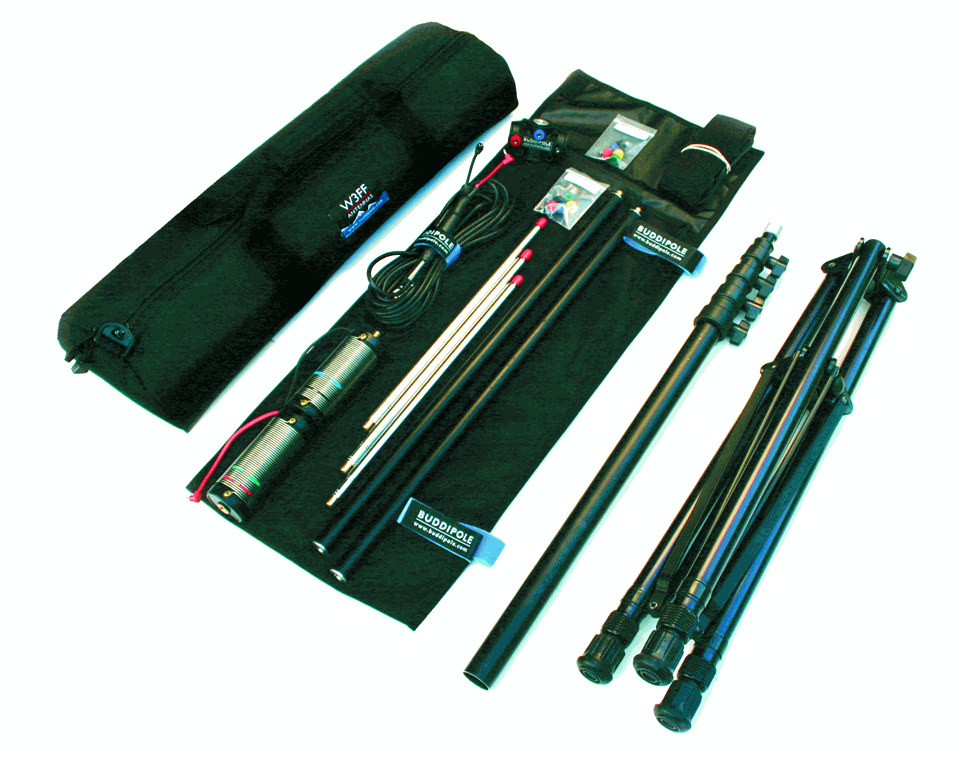

The Buddipole Deluxe Package includes everything you need for setting up an efficient portable antenna solution anywhere in the world in just a few minutes. The package includes the following custom components which all fit into the padded cordura nylon custom-carrying bag:
The Buddipole Antenna (9 bands, 2 – 40 meters) with 25 foot coax assembly (includes VersaTee)
Tripod – extendable legs and locking base
Portable Mast extends to 8 in height
Rotating Arm Kit change configurations

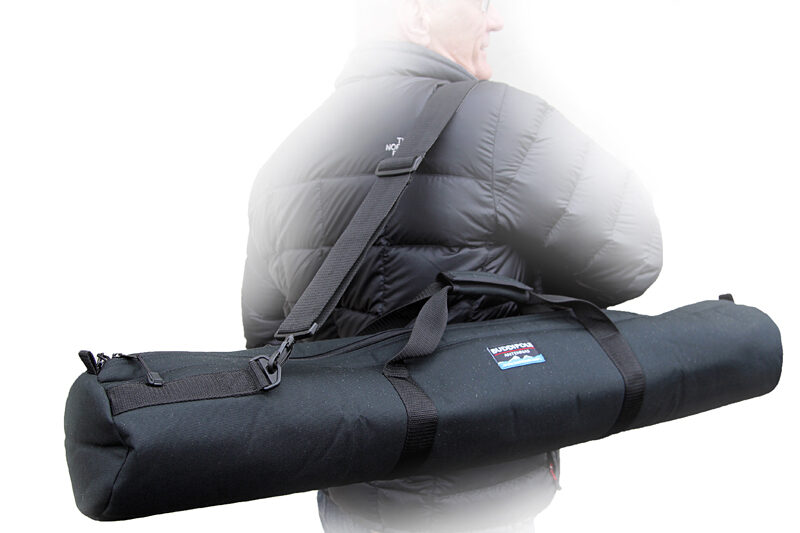

Antenna System Bag padded cordura nylon w/shoulder strap
Extra Telescopic Whip
3 extra Coil Clips
Photo by Buddipole
SPECIFICATIONS:
- Length collapsed: 24 inches (60cm)
- Length extended (antenna): 16 feet (4.9m)
- Power Rating: QRP to 250 Watts
- Weight: 9.5 lbs (4,3 KG)
- Coil Diameter: 1.75 inches (4.5cm)
- Frequency Coverage: 7 to 54MHz continuous, plus 144 to 148MHz
(pdf file) Antenna operating manual
Price: $399 USD
— — —
Long Vertical version

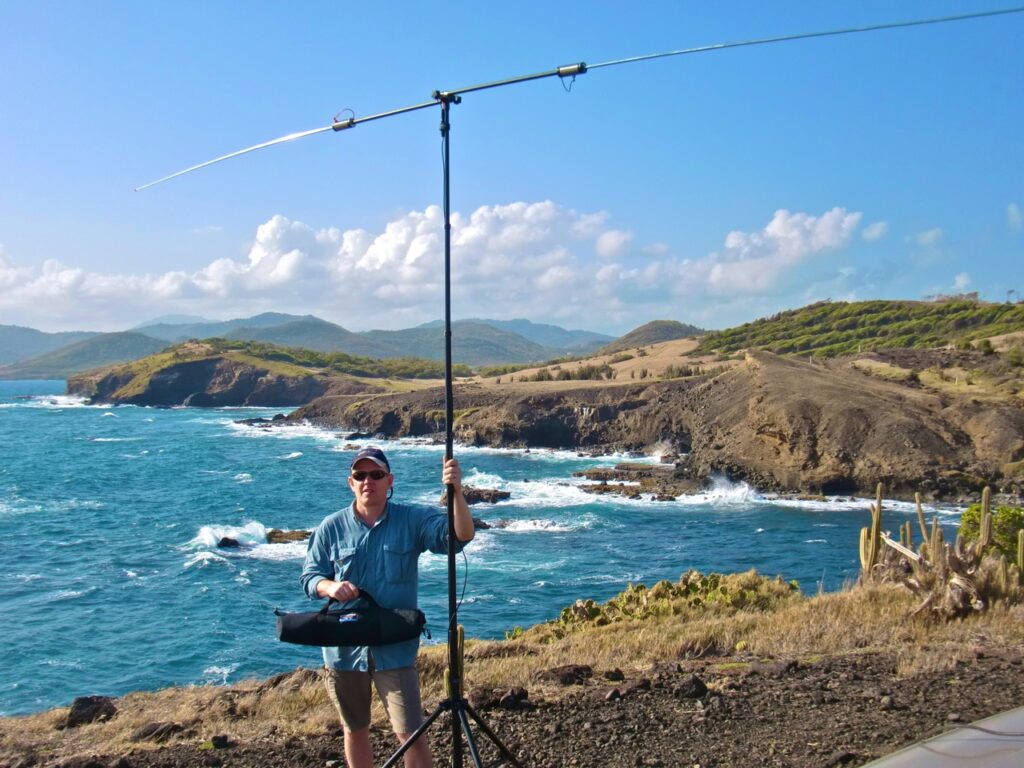

Photo by Buddipole
This package features our long mast which extends to 18′ in height (19′ when mounted in tripod). The additional height is ideal for operators who are looking to increase antenna height above ground to improve efficiency and lower the takeoff angle of the standard dipole configuration.
long package has a few other differences which set it apart from our regular Deluxe Package:
50′ coax assembly with built-in balun (instead of 25′)
Included guying kit
Long carrying bag (40″ in length)
Photo by Buddipole
SPECIFICATIONS:
- Length collapsed: 40 inches (101cm)
- Length extended (antenna): 16 feet (4.9m)
- Power Rating: QRP to 250 Watts
- Weight: 13 lbs (5,9 KG)
- Coil Diameter: 1.75 inches (4.5cm)
- Frequency Coverage: 7 to 54MHz continuous, plus 144 to 148MHz
Price: $485 USD
