The Barrett PRC -2090 tactical manpack is rugged, lightweight and fully immersible. It provides a range of international standard 4 and 6 digit Selective Call facilities including Telcall, SMS, GPS position and remote transceiver operational status monitoring, point to point Secure Call and remote transceiver disable capabilities.
The Barrett PRC-2090 tactical manpack delivers outstanding voice quality through the use of an advanced DSP noise reduction system that reduces external channel noise, the effects of interference and enhances audio signals to provide easier listening. The level of noise reduction can be easily selected to suit prevailing conditions.

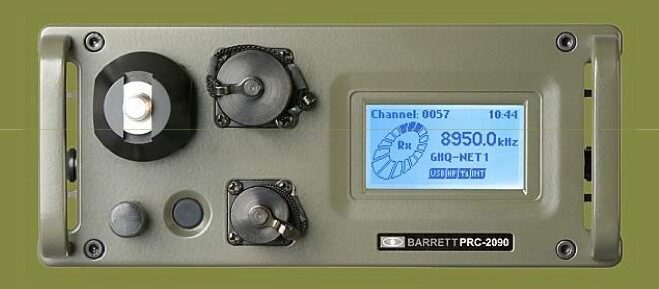

The display, complete with the handset, detaches from the transceiver unit. This enables the operator to wear the display unit on his front webbing and have full operational access without having to remove the manpack. For temporary command posts, an optional 15 metre interface cable allows transceiver unit to be located at a convenient position away from the operator.
Key Features
Advanced frequency hopping
ALE to MIL-STD 188-141B (FED STD 1045)
Internal datamodems Clover 2000 or STANAG5066
Secure Call
Display removable for wearing on webbing
Rugged custom handset with full keypad
5.3Kg with 10Ah battery
Vehicle docking station with full 100W PEP RF power output
Fully immersible
General Specifications
Frequency range 1.6-30MHz Tx, 500kHz-30MHx Rx
Channel Capacity Up to 500 programmable channels (simplex or semi-duplex)
Operating Mode J3E (USB/LSB), H3E (AM), J2A (CW), J2B (AFSK), optional J2B
(AFSK) with narrow filter
Frequency Stability ±0.3 ppm
Primary Voltage 22-24V DC (negative ground)
Receiver Sensitivity -120dBm (0.224uV) for 10dB SINAD – J3E Mode pre-amp on,
-110dBm for 20dBSINAD – J3E pre-amp on
-115dBm (0.398uV) for 10dB SINAD – J3E Mode pre-amp off,
-105dBm (1.260uV) for 20dBSINAD – J3E pre-amp off
Transmitting Power 100 watts PEP voice (when deployed in vehicle or base station
docking station) or 25 watt PEP two tone
30 watts PEP voice or 8 watt PEP two tone, 10 watts PEP voice
Temperature -30 to +60C
Size PRC-2090 21.5 x 9.0 x 31.0cm
Battery 21.0 x 9.0 x 11.5cm
Detachable Display Unit 13.0 x 6.0 x 26.5cm
Weight PRC-2090: 3.9kg
10Ah Lithium Ion Battery 1.3kg
