ANAN-10E HF + 6M 10W All Mode Transceiver.
Description:
Differences between the ANAN-10 & the ANAN-10E
1. The ANAN-10E uses a 14 bit ADC while the ANAN-10 uses a 16 bit ADC
2. The ANAN-10E uses an EP3C25 FPGA while the ANAN-10 uses a larger EP3C40
3. The ANAN-10E supports 2 receivers while the ANAN-10 supports 7 receivers
The ANAN-10E is an ideal platform who want an entry level DDC/DUC SDR tranceiver, performance of the rig far exceeds most high end legacy radios.
Specifications & Highlights:
Mosfet 10W Linear amplifier (160M-6M) gives 15-20W out on HF and 8-10W on 6M, 14 BIT LTC2208 ADC and an EP3C25 FPGA

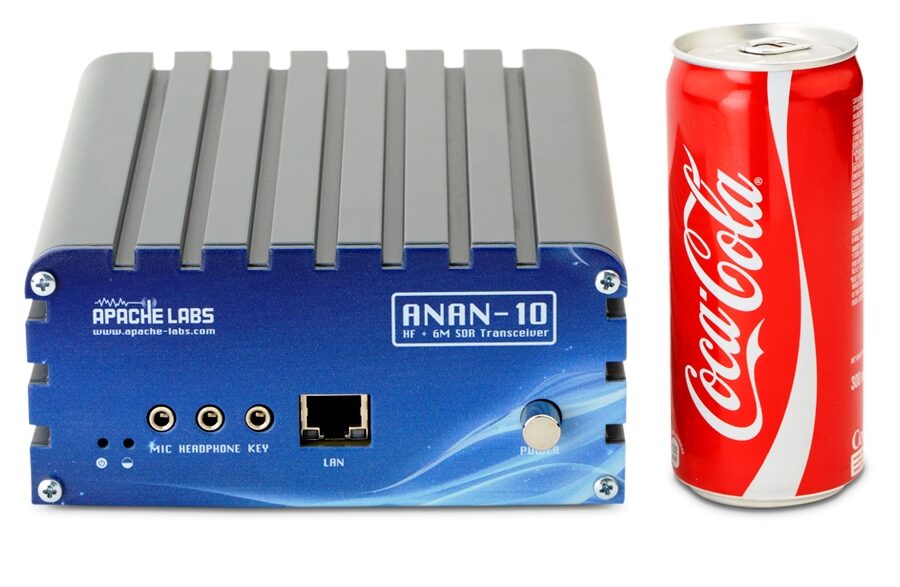

Custom build rugged Extruded Housing (same as the ANAN-10)
(note: no ventilation holes required in .mil style designs)
Supports 2 fully independent receivers (sharing the same antenna – and with suitable PC software, Each receiver can display 48/96/192/384kHz of spectrum)
Blocking Dynamic Range (ARRL Method) no detectable gain compression
below ADC overload
Transmit and receive image rejection > 110dB
Full duplex operation, any split over entire 160m to 6m range.
Software-selectable 31dB input attenuator in 1dB steps
Firmware can be updated via the Industry Standard TCP/IP network Ethernet connection.
Price: $895 USD
