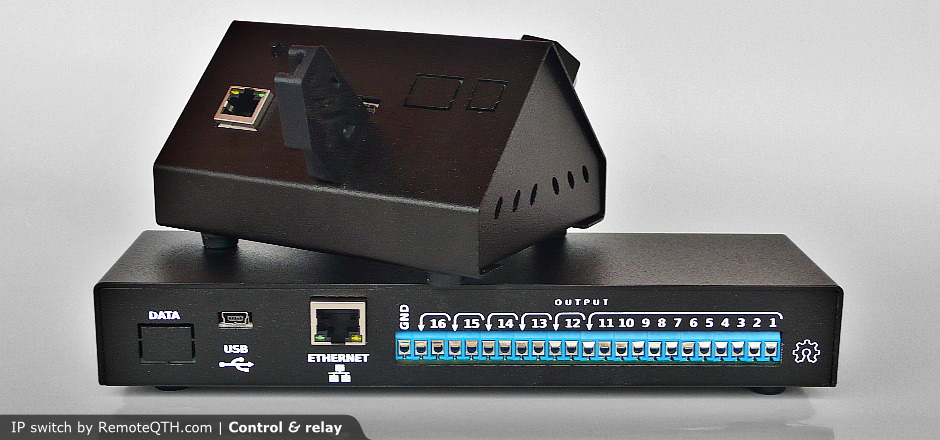

Intuitive remote control switching contains of two devices – controller and relay box – communicate via ethernet. Suitably for realtime remote devices control, such as receiving antennas, power on/off for any devices, PTT, …
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Photo by remoteqth.com
Main functions:
16 inputs:
11 positions rotary switch,
4 independent on/off switches with LED indication,
1 press button.
16 relay outputs:
0,5A/125VAC, 1A/24VDC,
each output is signalised by own LED,
1-11 with common line input.
TCP232 ethernet module configurable over network with windows software.
Settings in arduino source code.
Very low TCP bandwidth, only several units of bytes per second.
1 to 11 outputs are protected as single out (antenna switching).
Network latency (delay) is indicated by LINKED LED. Latency is the same as LED off time.
Relay parking to define output (default 11), after network unavailable with preset delay. Typically used for grounded TRX input.

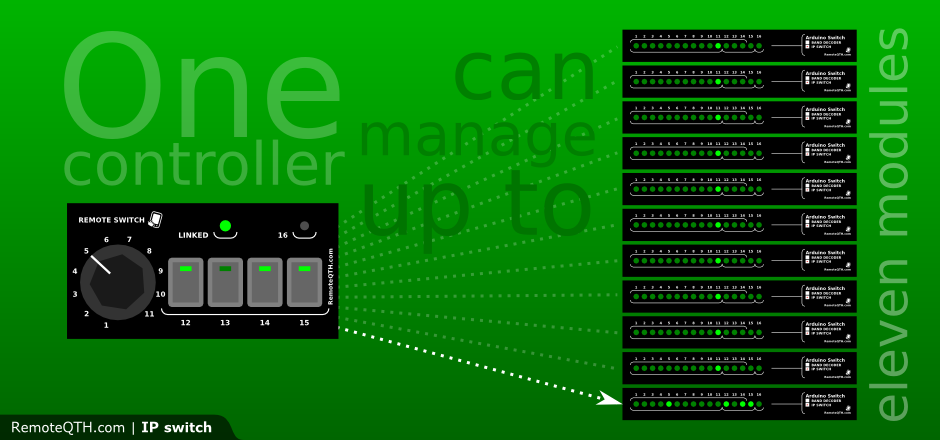

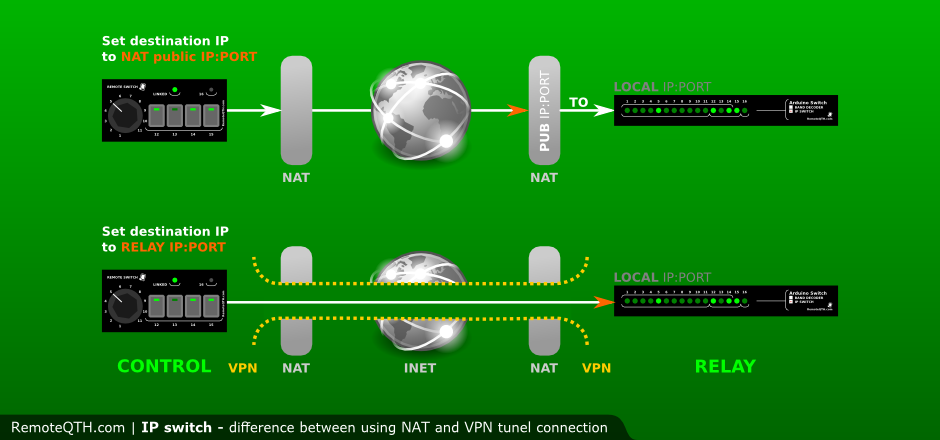

One control box is able to control up to eleven relay boards – CFG button reconfigure chip and redirect network (more in firmware configuration).
Open Arduino platform allows you to customize firmware.

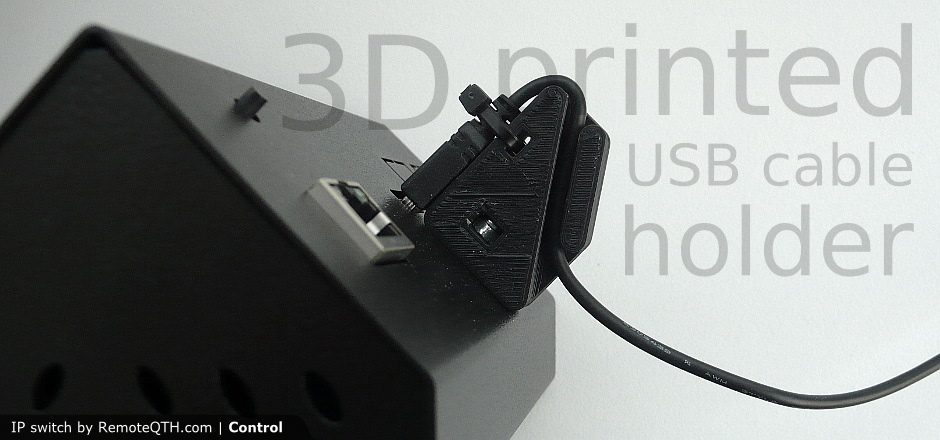

5V power voltage from USB mini plug.
Size: control 12x6x9cm, relay 22x3x7cm.
Weight: control 210g, relay 270g.
One control box switched between seven remote relay boxes (maximum eleven):
